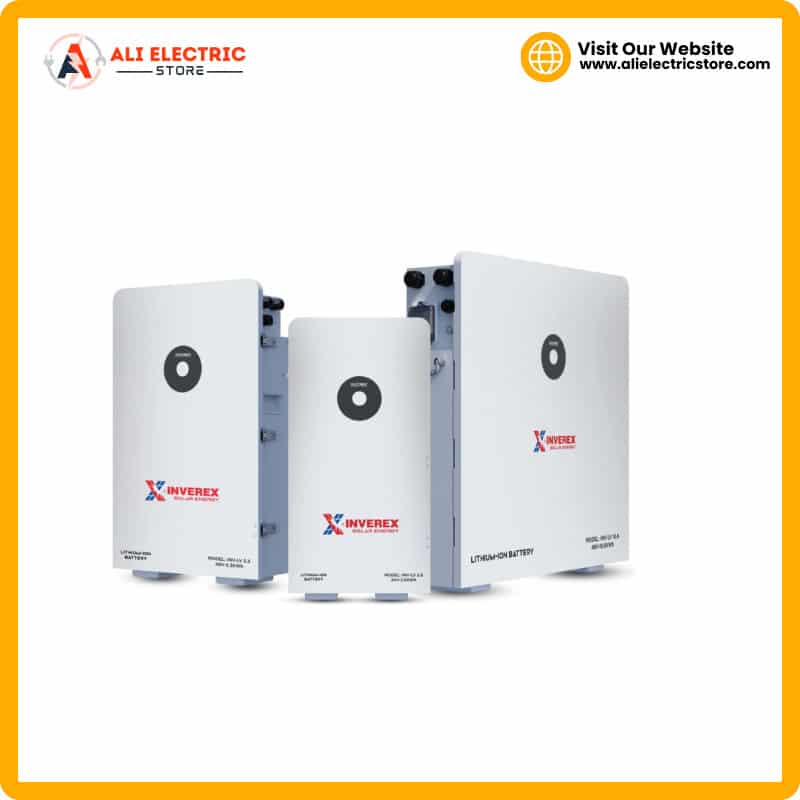

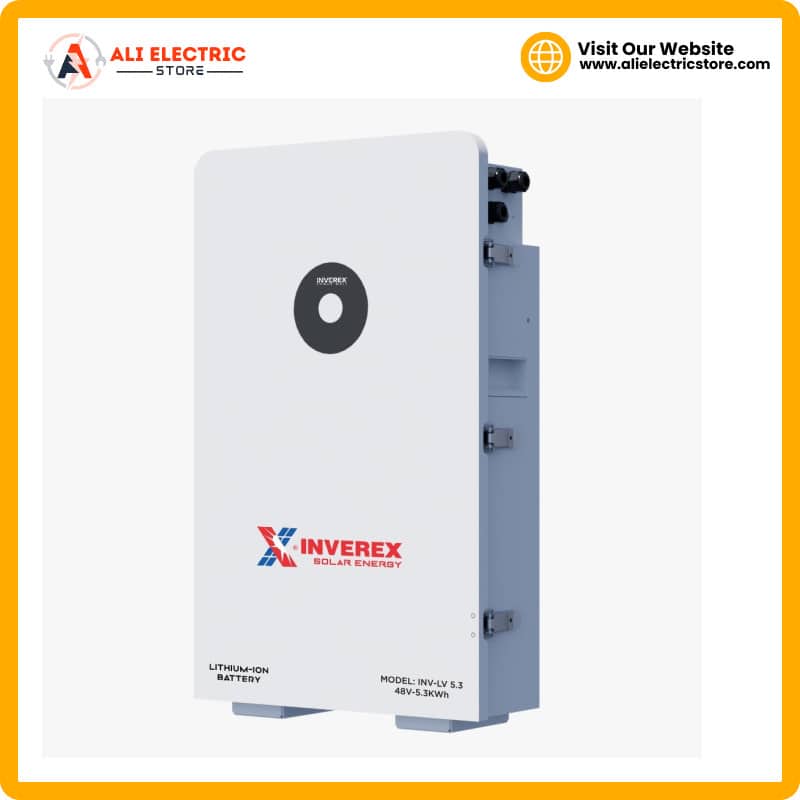

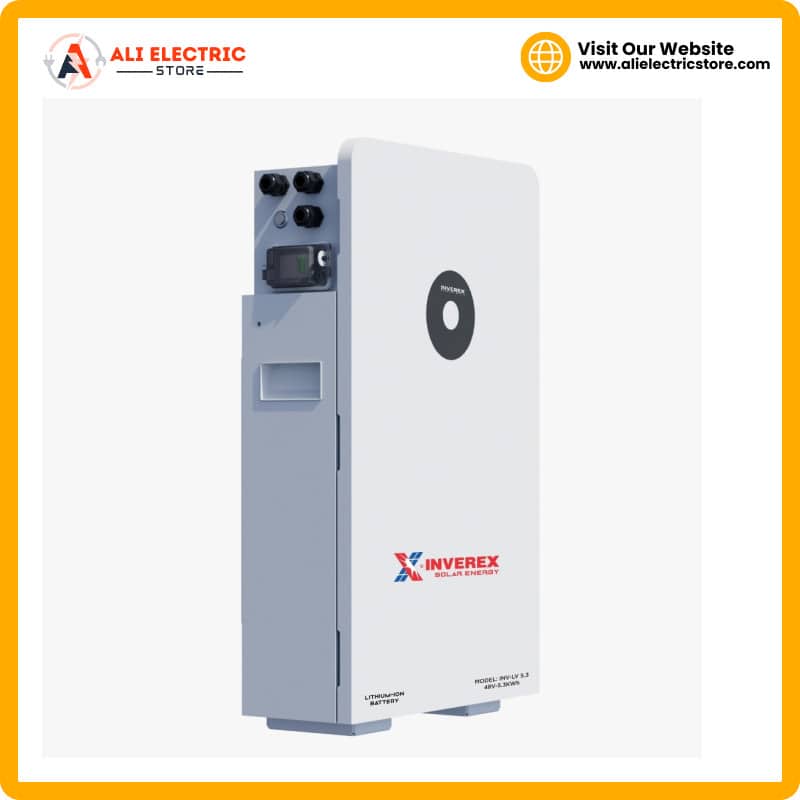

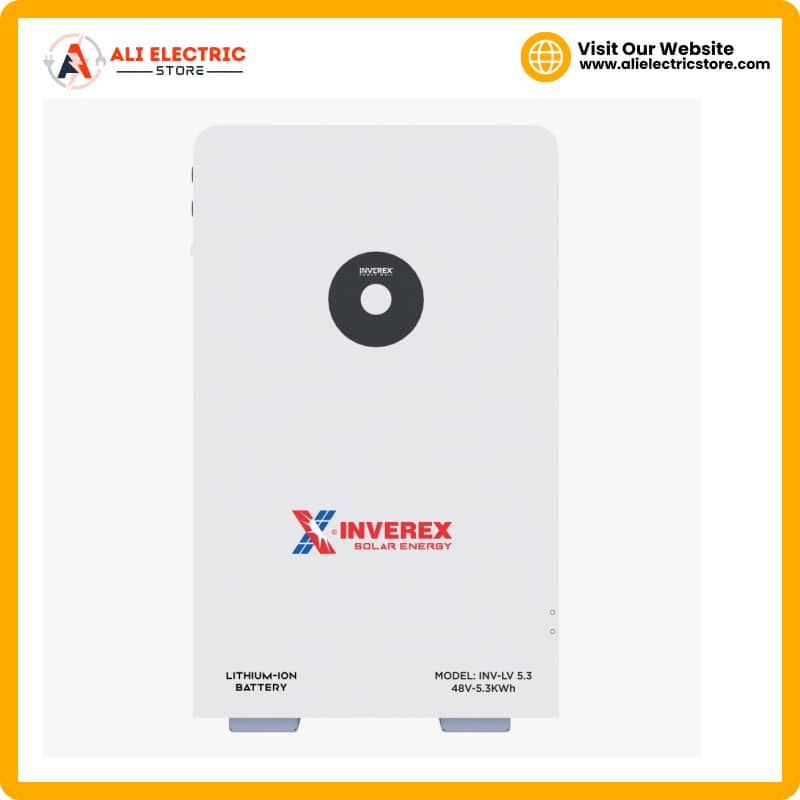

Inverex INV-LV5.3 51.2V 104Ah LiFePO4 Lithium Battery 5.3kWh IP65 Smart BMS
Original price was: ₨ 385,000.₨ 325,000Current price is: ₨ 325,000.
Inverex INV-LV5.3 51.2V 104Ah LiFePO4 Lithium Battery with 5.3kWh capacity, IP65 outdoor protection, smart BMS, 6000+ cycle life, and scalable up to 32 parallel units. Compatible with all inverter brands. 5-year warranty.
کیش آن ڈیلیوری (COD) آرڈر کے لیے، ڈلیوری چارجز پہلے ادا کرنے ہوں گے۔ آپ کی ادائیگی کی تصدیق ہوتے ہی آرڈر بھیج دیا جائے گا۔
کیش آن ڈیلیوری (COD) آرڈر کے لیے، ڈلیوری چارجز پہلے ادا کرنے ہوں گے۔ آپ کی ادائیگی کی تصدیق ہوتے ہی آرڈر بھیج دیا جائے گا۔
Inverex INV-LV5.3 51.2V 104Ah LiFePO4 Lithium Battery 5.3kWh IP65 Smart BMS
Original price was: ₨ 385,000.₨ 325,000Current price is: ₨ 325,000.
Original price was: ₨ 385,000.₨ 325,000Current price is: ₨ 325,000.
Product Highlights
| Brand | Inverex |
|---|
Inverex INV-LV5.3 51.2V 104Ah LiFePO4 Lithium Battery with 5.3kWh capacity, IP65 outdoor protection, smart BMS, 6000+ cycle life, and scalable up to 32 parallel units. Compatible with all inverter brands. 5-year warranty.
Payment Methods:
Inverex INV-LV5.3 — 51.2V 104Ah LiFePO4 Lithium Battery 5.3kWh
🔋 5.3kWh Capacity
⚡ 51.2V / 104Ah
🛡️ IP65 Rated
🔄 6000+ Cycles
🔗 32-Unit Scalable
✅ Universal Compatible
🔒 5-Year Warranty
Key Features
5.3kWh Usable Energy
Store 5.3 kilowatt-hours of clean solar energy — enough to power essential home loads through an 8-hour outage without the grid.
LiFePO4 Chemistry
Lithium Iron Phosphate — the safest, most stable lithium chemistry. No thermal runaway risk, no toxic gases, intrinsically non-flammable.
IP65 Outdoor Protection
Fully dust-sealed and water-jet resistant — install indoors or outdoors, in garages, utility rooms, or wall-mounted on exterior walls.
Smart BMS Onboard
Intelligent Battery Management System monitors cell voltage, temperature, and current — prevents overcharge, over-discharge, and short circuit 24/7.
Scalable — Up to 32 Units
Connect up to 32 INV-LV5.3 batteries in parallel for 169.6kWh of storage — grows with your energy independence goals.
Universal Inverter Compatible
Works with Inverex, Solis, Growatt, Victron, Voltronic, and virtually all major inverter brands — not locked to any single ecosystem.
LiFePO4 Technology Deep Dive
🔒 Thermal Safety
LiFePO4 has an exceptionally stable chemical structure — does not release oxygen at high temperatures, eliminating thermal runaway risk common in NMC/NCA batteries.
🔄 6000+ Cycle Life
Cycle once a day for over 16 years before reaching 70% end-of-life capacity. Far beyond lead-acid’s 500–1,000 cycles.
⚡ 1C / 1.2C Rate
Charges at full 1C rate and continuously discharges at 1.2C (with 2C peak for 10s) — handles high-demand loads without voltage sag.
❄️ Wide Temperature Range
Operates from -20°C to +55°C — reliable in Pakistan’s coldest winters and hottest summers without capacity loss.
| Specification | Value |
|---|---|
| Model | INV-LV5.3 |
| Chemistry | LiFePO4 (Lithium Iron Phosphate) |
| Energy Capacity | 5.3kWh |
| Nominal Voltage | 51.2V |
| Ampere-Hours | 104Ah |
| Max Charge Rate | 1C |
| Continuous Discharge | 1.2C |
| Peak Discharge (10s) | 2C |
| Current Limit | 10A per unit |
| Operating Temperature | -20°C to +55°C |
| Protection Rating | IP65 |
| Cycle Life | ≥6,000 cycles @ 70% EOL |
| BMS | Intelligent Smart BMS (built-in) |
| Communication | RS485 / CAN Bus |
| Max Parallel Units | 32 units (169.6kWh max) |
| Warranty | 5 Years |
| SKU | AR-000956 |
Smart BMS & Communication
Smart BMS
Built-in
RS485
Communication
CAN Bus
Communication
Remote
Monitoring
Overcharge
Protection
Short Circuit
Protection
IP65 — Install Anywhere, Even Outdoors
The INV-LV5.3 carries an IP65 ingress protection rating — fully sealed against dust and certified against water jets from any direction. Unlike standard indoor-only batteries, this unit can be wall-mounted on exterior walls, installed in open garages, or placed in utility rooms without any additional enclosure or weatherproofing.
Massively Scalable — Up to 32 Units & 169.6kWh
Start with a single 5.3kWh battery and expand to 32 units — giving you up to 169.6kWh of storage. This makes the INV-LV5.3 suitable not just for homes but for commercial buildings, factories, and farms that need serious energy independence from load-shedding.
Ideal Applications
Home Solar Storage
Shops & Businesses
Commercial & Industrial
Off-Grid Agriculture
Solar Self-Consumption
🏆 Why Choose the Inverex INV-LV5.3?
- LiFePO4 chemistry — safest lithium technology, no thermal runaway, no fire risk
- 6,000+ cycle life — lasts 3–5× longer than lead-acid, far better value over time
- IP65 rated — genuinely outdoor-capable unlike most lithium batteries in Pakistan
- Smart BMS — protects your investment with 24/7 intelligent cell monitoring
- Scalable to 32 units (169.6kWh) — future-proof as your needs grow
- Universal compatibility — works with all major inverter brands, not just Inverex
- Wide temperature range (-20°C to +55°C) — reliable in both Karachi summers and mountain winters
- 5-year official warranty — strong after-sales support via Inverex’s nationwide network
5-Year Official Inverex Warranty
Backed by Inverex’s established network across Pakistan — reliable warranty service for one of the country’s most trusted energy storage solutions.
📦 Order Now & Get Delivered Across Pakistan | WhatsApp: 03413489181
