UNI-T UT203+ Digital Clamp Meter 400A AC/DC True RMS Multimeter
Original price was: ₨ 9,500.₨ 7,500Current price is: ₨ 7,500.
The UNI-T UT203+ is a True RMS clamp meter that reads AC and DC current up to 400A without breaking the circuit. It also measures voltage, resistance, capacitance and frequency, and it has NCV so you can check a wire is live before you touch it. The 28mm jaw clamps around a single conductor, and the backlit 4000-count display stays readable in a dim meter room. It’s rated CAT II 600V and CAT III 300V for home and light industrial work.
کیش آن ڈیلیوری (COD) آرڈر کے لیے، ڈلیوری چارجز پہلے ادا کرنے ہوں گے۔ آپ کی ادائیگی کی تصدیق ہوتے ہی آرڈر بھیج دیا جائے گا۔
کیش آن ڈیلیوری (COD) آرڈر کے لیے، ڈلیوری چارجز پہلے ادا کرنے ہوں گے۔ آپ کی ادائیگی کی تصدیق ہوتے ہی آرڈر بھیج دیا جائے گا۔
UNI-T UT203+ Digital Clamp Meter 400A AC/DC True RMS Multimeter
Original price was: ₨ 9,500.₨ 7,500Current price is: ₨ 7,500.
Original price was: ₨ 9,500.₨ 7,500Current price is: ₨ 7,500.
Product Highlights
| Brand | UNI-T |
|---|---|
| Model | UT203+ |
| Rating | 400A AC/DC clamp meter |
The UNI-T UT203+ is a True RMS clamp meter that reads AC and DC current up to 400A without breaking the circuit. It also measures voltage, resistance, capacitance and frequency, and it has NCV so you can check a wire is live before you touch it. The 28mm jaw clamps around a single conductor, and the backlit 4000-count display stays readable in a dim meter room. It’s rated CAT II 600V and CAT III 300V for home and light industrial work.
Payment Methods:
UNI-T UT203+ Digital clamp meter
True RMS clamp meter, 400A AC/DC, with NCV and a backlit 4000-count display
The UNI-T UT203+ clamps around a wire to read current, so you don’t have to break the circuit or unhook anything. It handles up to 400A on both AC and DC, and because it’s True RMS the reading stays accurate on the distorted waveforms you get off inverters and UPS units. Away from the clamp it works as a full multimeter for voltage, resistance, capacitance and frequency.
True RMS reading
Reads AC current accurately on the noisy waveforms from inverters, UPS and switching loads, where a cheap averaging meter reads low.
AC and DC current
Measures up to 400A on both AC and DC, so one tool covers mains loads and battery or solar DC lines.
NCV wire check
The non-contact voltage sensor beeps near a live wire, so you can tell if a line is hot before opening it up.

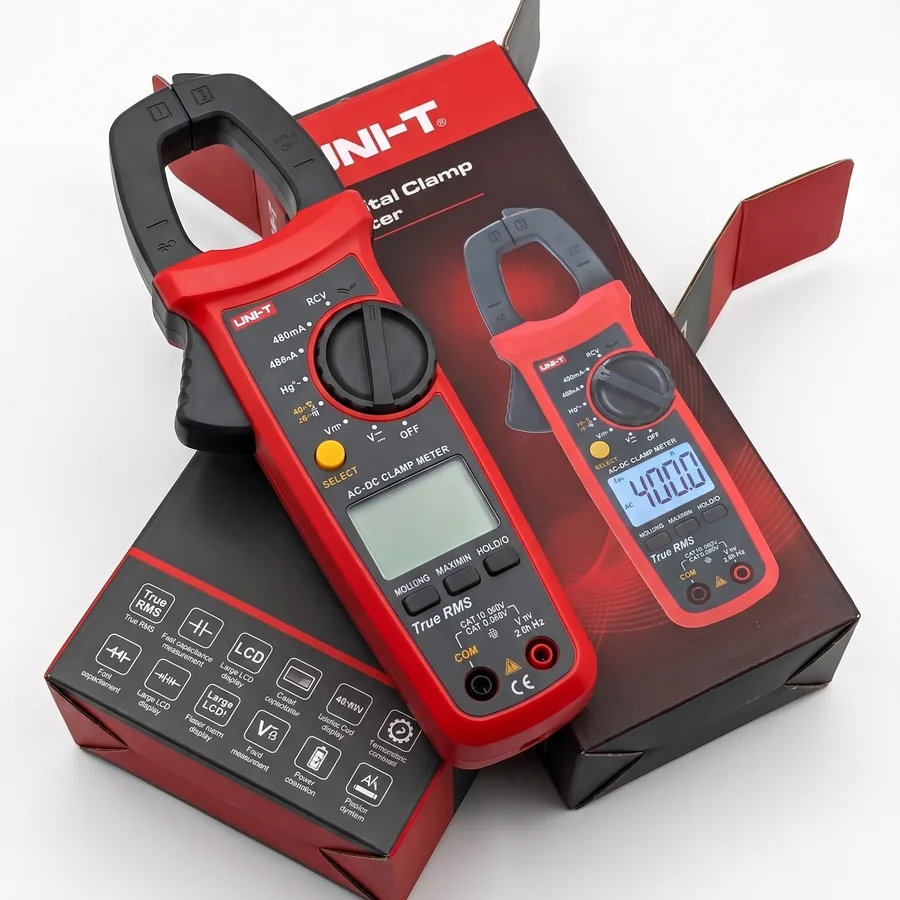

Backlit display
The 4000-count screen has a backlight for dark meter cupboards, and data hold freezes a reading you can’t see while probing.

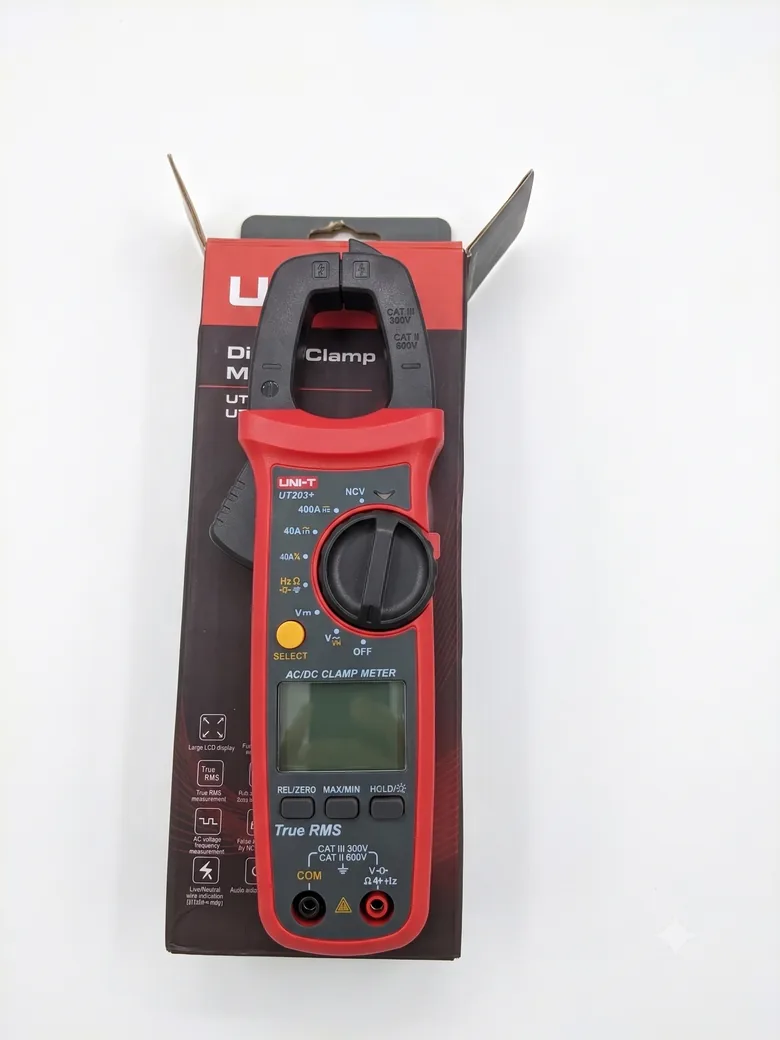

A closer look
More about the UT203+

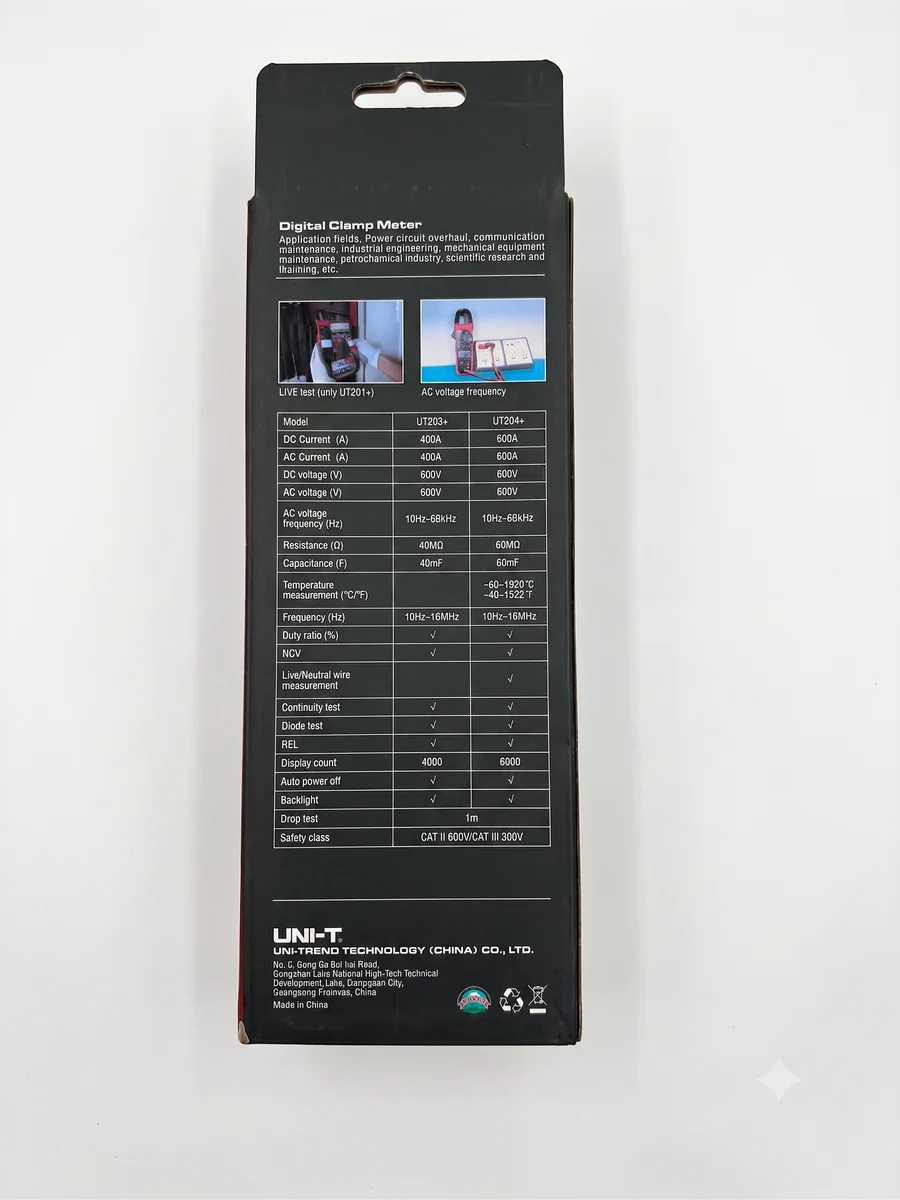

Specifications
| Specification | Detail |
|---|---|
| Brand | UNI-T |
| Model | UT203+ |
| Type | Digital clamp meter (True RMS) |
| AC current | up to 400A |
| DC current | up to 400A |
| AC / DC voltage | up to 600V |
| Resistance | up to 40MΩ |
| Capacitance | up to 40mF |
| Frequency | 10Hz to 10MHz |
| Extra functions | NCV, continuity, diode, duty cycle, MAX/MIN, REL, data hold, auto power off |
| Display and jaw | 4000 count backlit display, 28mm jaw opening |
| Safety rating | CAT II 600V, CAT III 300V; runs on 2 x AAA batteries |
Good to know
What the UT203+ can measure and where it fits:
- Clamp AC or DC current up to 400A around a single wire
- Measure AC and DC voltage up to 600V with the test leads
- Check resistance up to 40MΩ, plus continuity and diodes
- Read frequency up to 10MHz and capacitance up to 40mF
- Find a live wire with NCV before touching it
- Freeze a reading with data hold, or catch the peak with MAX/MIN
Clamp only one conductor at a time. Clamping live and neutral together cancels out and reads near zero. Stay within the CAT II 600V and CAT III 300V rating, keep your fingers behind the guard on the leads, and it runs on two AAA batteries.

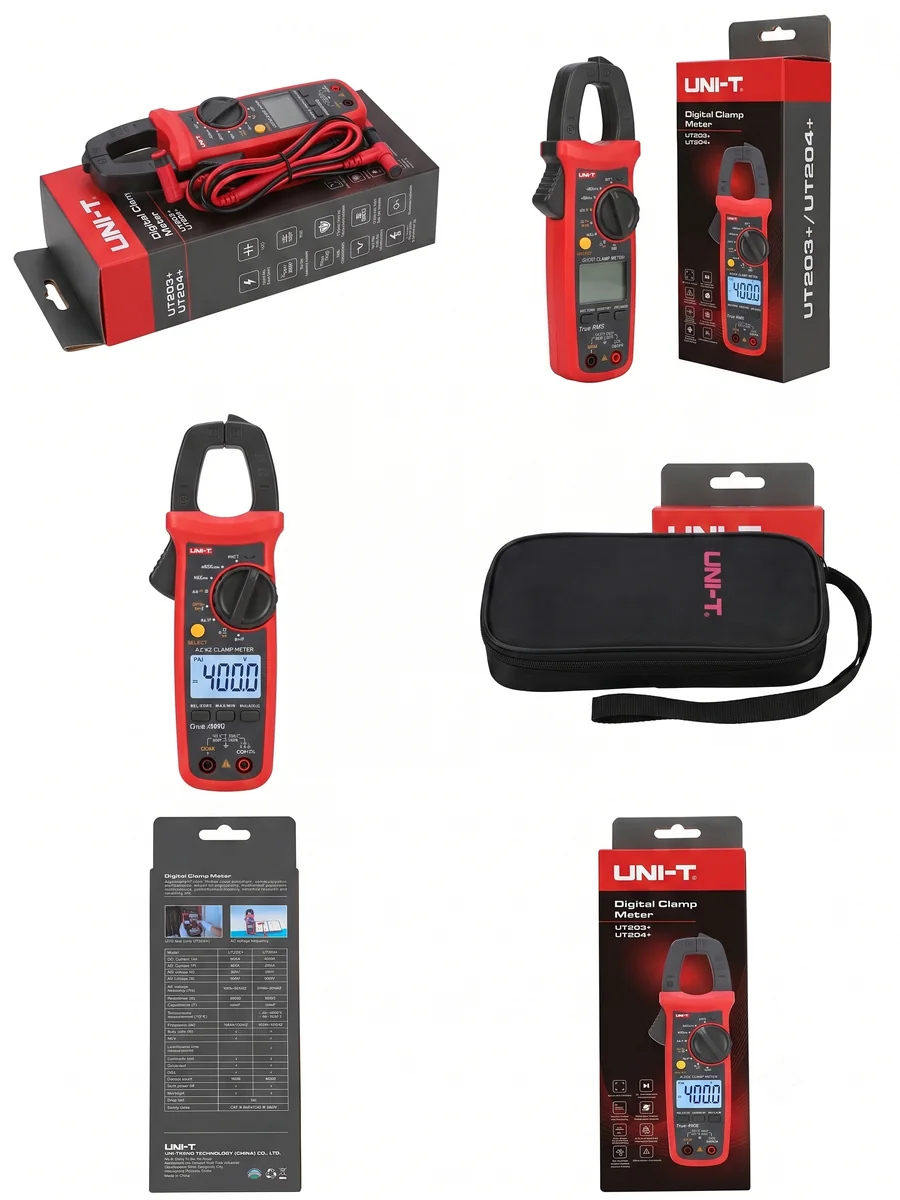

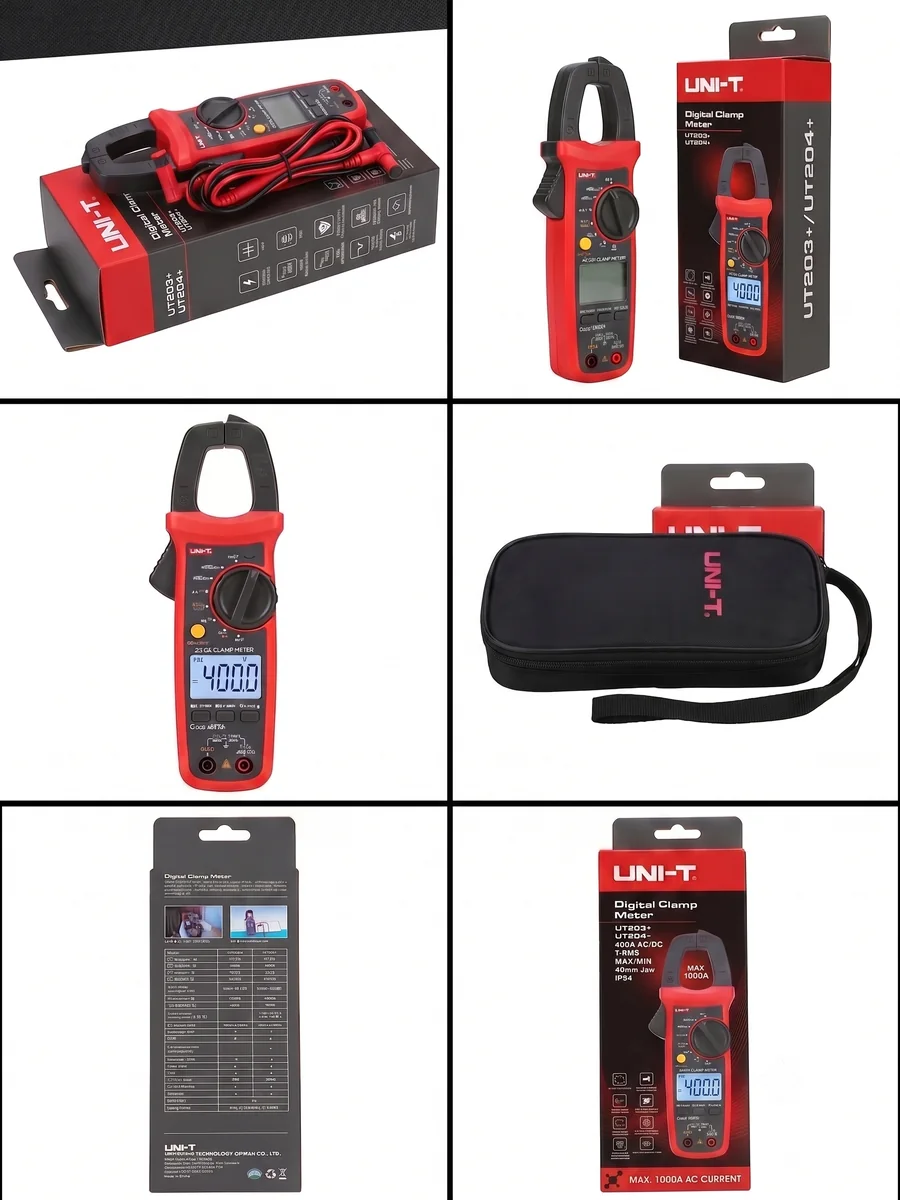

In the box
- UNI-T UT203+ clamp meter

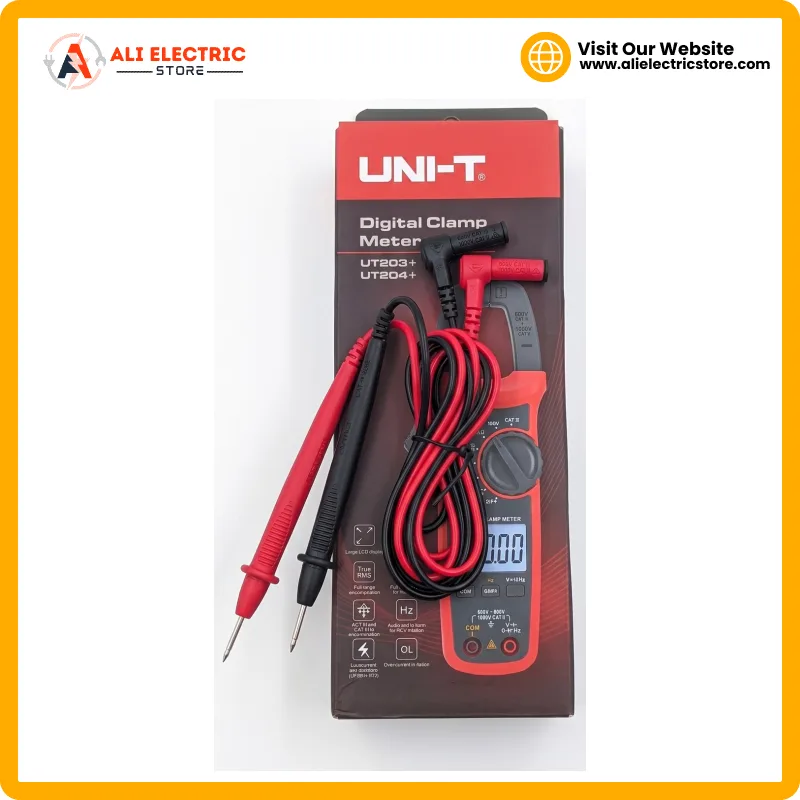

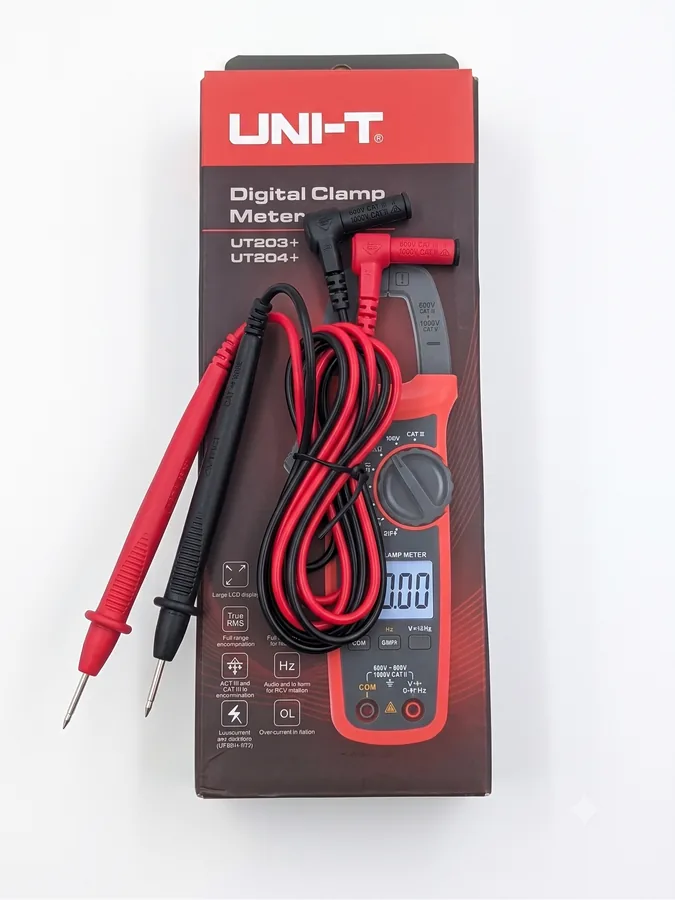

- Pair of test leads

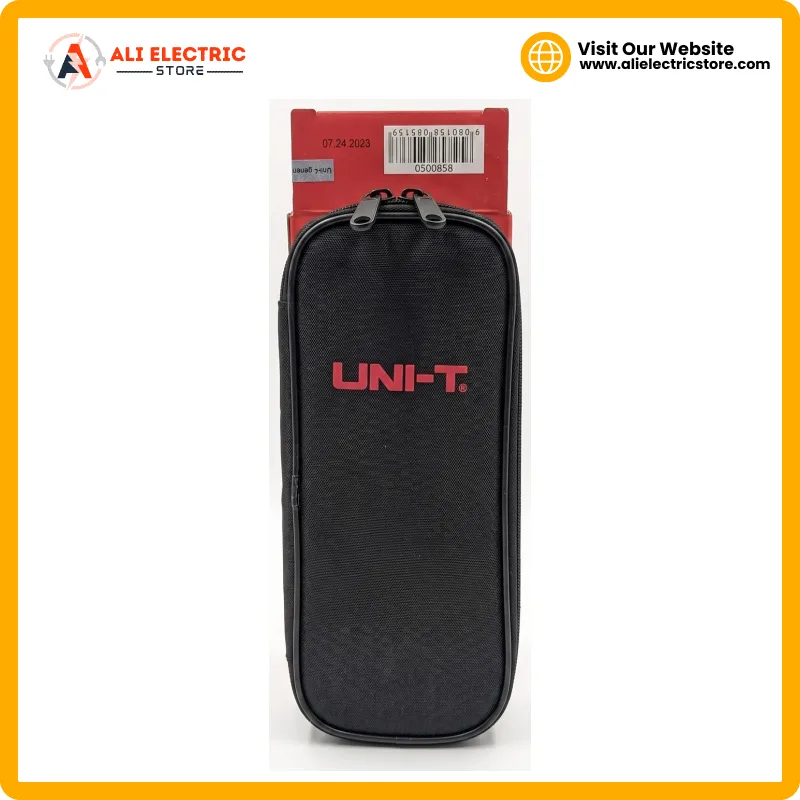

- Zippered carry pouch
- 2 x AAA batteries
- User manual
Why it’s worth having
- True RMS, so current readings on inverter and UPS output are accurate rather than guessed
- Reads both AC and DC current, which many budget clamp meters can’t do on DC
- NCV lets you confirm a wire is live before you open a junction box
- 4000-count backlit display is easy to read in a dark meter room
- CAT II 600V and CAT III 300V rating covers home and light commercial wiring
Order now for delivery across Pakistan.
