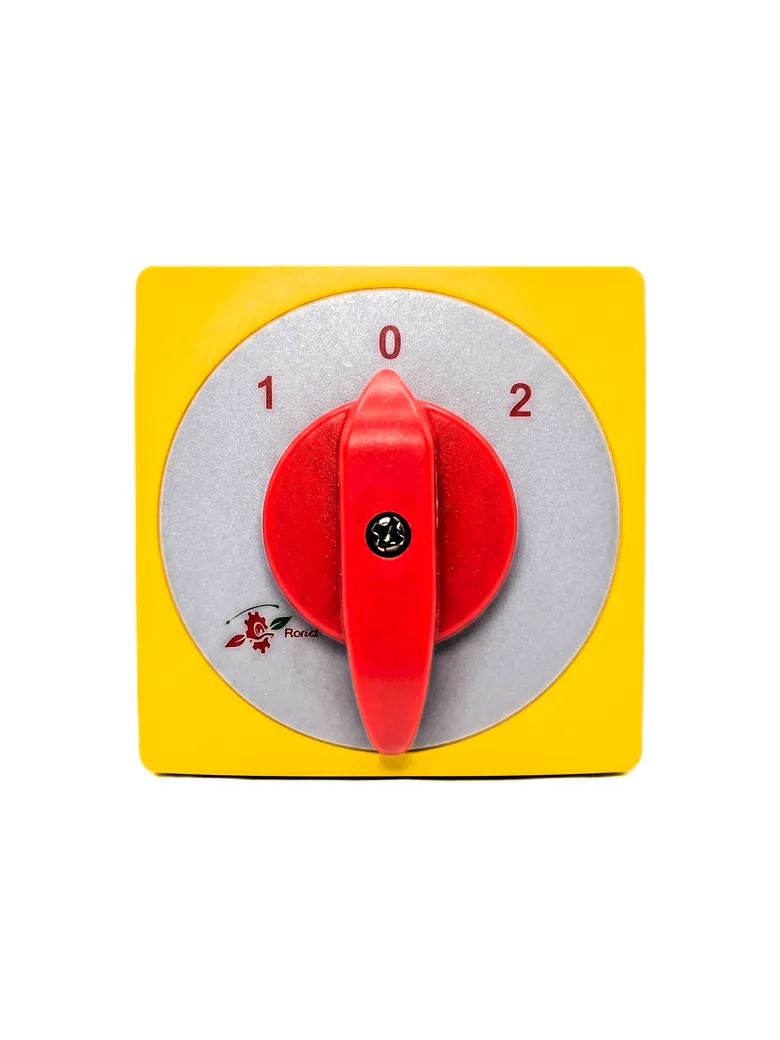

Hi Tech 40A 2-Pole Manual Changeover Switch (1-0-2) for Mains & Generator, HC-240
Original price was: ₨ 1,700.₨ 1,350Current price is: ₨ 1,350.
The Hi Tech HC-240 is a manual 40A 2-pole changeover switch with a 1-0-2 rotary knob. Turn it to 1 or 2 to pick between two supplies, like your mains and a generator, and leave it at 0 to cut both. It’s rated up to 690V and the box lists 99.5% copper contact parts. You mount it on a panel or board and switch by hand.
کیش آن ڈیلیوری (COD) آرڈر کے لیے، ڈلیوری چارجز پہلے ادا کرنے ہوں گے۔ آپ کی ادائیگی کی تصدیق ہوتے ہی آرڈر بھیج دیا جائے گا۔
کیش آن ڈیلیوری (COD) آرڈر کے لیے، ڈلیوری چارجز پہلے ادا کرنے ہوں گے۔ آپ کی ادائیگی کی تصدیق ہوتے ہی آرڈر بھیج دیا جائے گا۔
Hi Tech 40A 2-Pole Manual Changeover Switch (1-0-2) for Mains & Generator, HC-240
Original price was: ₨ 1,700.₨ 1,350Current price is: ₨ 1,350.
Original price was: ₨ 1,700.₨ 1,350Current price is: ₨ 1,350.
Product Highlights
| Brand | Hi Tech |
|---|---|
| Model | HC-240 |
| Rating | 40A 2-pole |
The Hi Tech HC-240 is a manual 40A 2-pole changeover switch with a 1-0-2 rotary knob. Turn it to 1 or 2 to pick between two supplies, like your mains and a generator, and leave it at 0 to cut both. It’s rated up to 690V and the box lists 99.5% copper contact parts. You mount it on a panel or board and switch by hand.
Payment Methods:
Hi Tech HC-240 Manual changeover switch
Manual 40A 2-pole switch to move between mains and generator
The Hi Tech HC-240 changeover switch gives you one knob to choose which supply runs your circuit. It’s a 40A, 2-pole unit with a 1-0-2 layout, so you can sit on supply 1, switch fully off at 0, or move to supply 2 without touching the wiring.
Two-way switching
Move your circuit between mains and a generator, or between any two supplies, with one turn of the knob.
Off in the middle
The center 0 position breaks both sides, so nothing stays live while you change over.

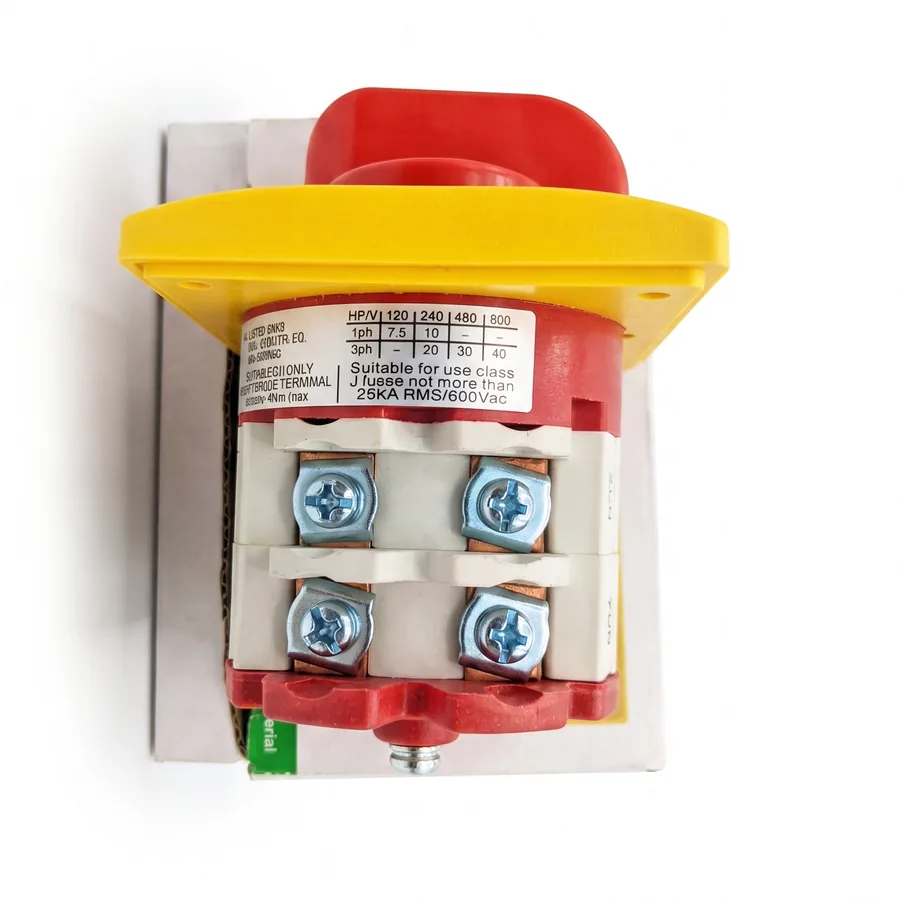

Copper contacts
The box lists 99.5% copper parts, which helps the contacts carry 40A without heating up quickly.
Manual operation
You turn it by hand. There’s no automatic transfer and nothing electronic to fail.
A closer look
Specifications
| Specification | Detail |
|---|---|
| Brand | Hi Tech |
| Model / code | HC-240 |
| Type | Manual rotary changeover switch (cam type) |
| Positions | 1 – 0 – 2 (supply 1 / off / supply 2) |
| Rated current | 40A |
| Poles | 2-pole (2P) |
| Rated voltage | Up to 690V AC |
| Contact material | 99.5% copper (per box) |

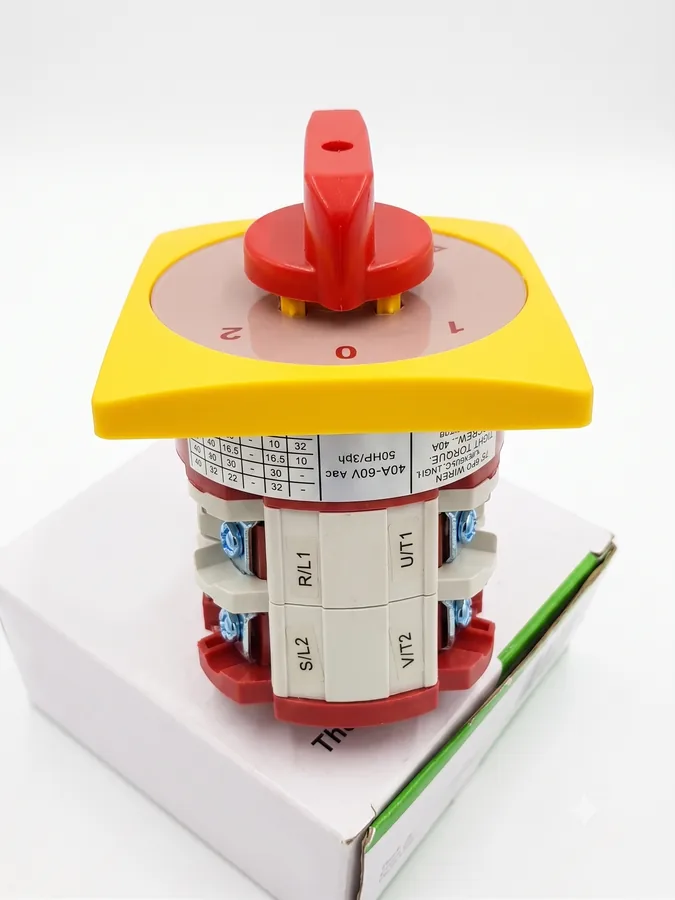

| Terminals | R/L1, S/L2 in; U/T1, V/T2 out |
| Mounting | Panel / surface mount |
| Operation | Manual, turned by hand |
| In the box | 1 unit |
Good to know
A changeover switch lets you pick which supply feeds your circuit without rewiring each time. Here’s where a 40A 2-pole unit like this fits.
- Switching a house or shop between WAPDA mains and a generator
- Moving a load between two separate supply lines
- Fully isolating a circuit by turning to the 0 position
- Single-phase or two-wire loads up to about 40A
- Panel or board mounting where you want a clear hand switch
This is a manual switch, so someone has to turn the knob to change supply. It won’t start the generator or switch over on its own. For loads above 40A, use a higher-rated changeover.
In the box
- 1 x Hi Tech HC-240 changeover switch
- Retail box
Why it’s worth having
- Rated for 40A across 2 poles, enough for many home and shop loads
- Center 0 position lets you break both supplies before switching
- The 1-0-2 layout makes it clear which supply is live
- Box states 99.5% copper contact parts for better current carrying
- Simple manual design with nothing electronic to go wrong
Order now for delivery across Pakistan.
