Hi Tech 63A Changeover Switch 2-Pole 1-0-2 for Mains & Generator (HC-263)
Original price was: ₨ 2,800.₨ 2,200Current price is: ₨ 2,200.
The Hi Tech HC-263 is a 63A two-pole rotary changeover switch that lets you move a single-phase load between two sources, like your mains supply and a generator. The dial has three positions, 1, 0 and 2, so you can also park it in the middle off position. Inside it uses copper contacts and it’s rated up to 690V. It mounts on a panel or board and the mounting bolts come in the box.
کیش آن ڈیلیوری (COD) آرڈر کے لیے، ڈلیوری چارجز پہلے ادا کرنے ہوں گے۔ آپ کی ادائیگی کی تصدیق ہوتے ہی آرڈر بھیج دیا جائے گا۔
کیش آن ڈیلیوری (COD) آرڈر کے لیے، ڈلیوری چارجز پہلے ادا کرنے ہوں گے۔ آپ کی ادائیگی کی تصدیق ہوتے ہی آرڈر بھیج دیا جائے گا۔
Hi Tech 63A Changeover Switch 2-Pole 1-0-2 for Mains & Generator (HC-263)
Original price was: ₨ 2,800.₨ 2,200Current price is: ₨ 2,200.
Original price was: ₨ 2,800.₨ 2,200Current price is: ₨ 2,200.
Product Highlights
| Brand | Hi Tech |
|---|---|
| Model | HC-263 |
| Rating | 63A |
The Hi Tech HC-263 is a 63A two-pole rotary changeover switch that lets you move a single-phase load between two sources, like your mains supply and a generator. The dial has three positions, 1, 0 and 2, so you can also park it in the middle off position. Inside it uses copper contacts and it’s rated up to 690V. It mounts on a panel or board and the mounting bolts come in the box.
Payment Methods:

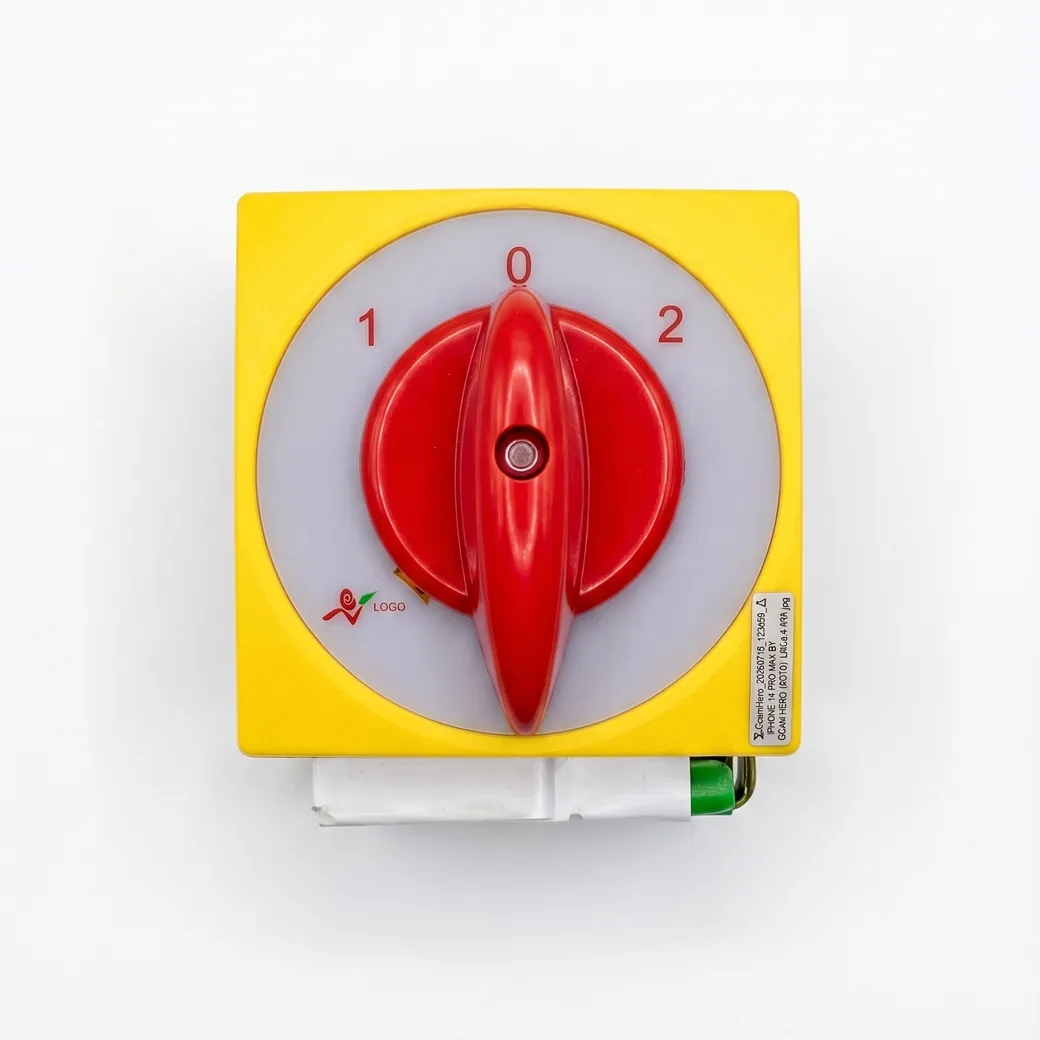

Hi Tech HC-263 Manual changeover switch
63A two-pole cam switch to change between mains and generator
The Hi Tech HC-263 changeover switch gives you a simple way to move your load from mains to generator and back with one turn of the handle. It’s a 63A two-pole switch with a 1-0-2 pattern, so position 0 in the middle keeps both sources disconnected until you pick one.
Two sources
Switch a single-phase load between mains and generator by turning the red handle to 1 or 2.
63A rating
Rated for 63A at up to 690V, so it suits most home and small shop loads.
1-0-2 dial
Three positions with a middle off, so you can cut both sources before you switch over.
Copper contacts

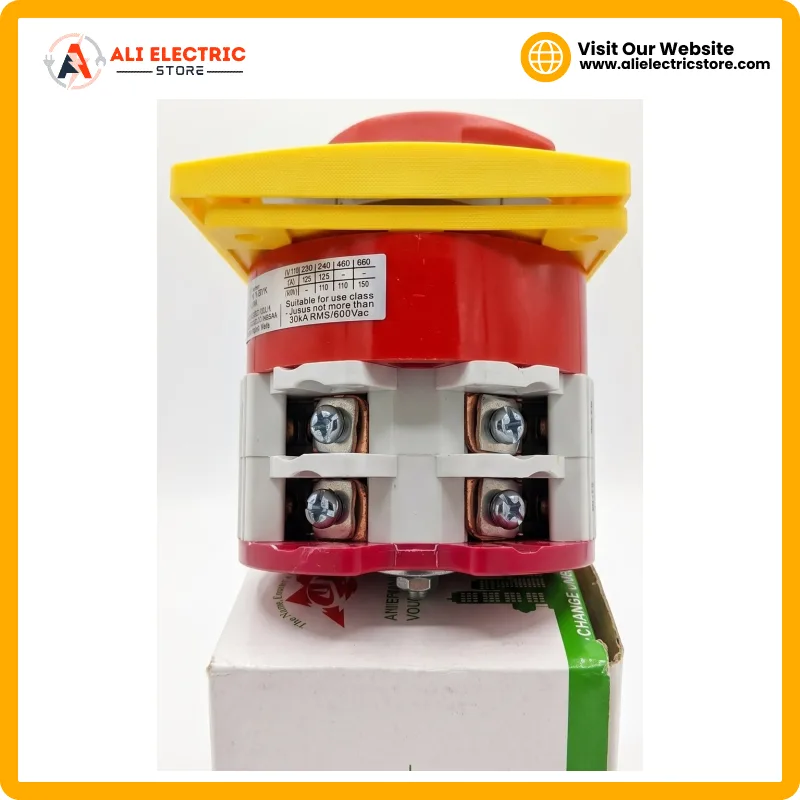

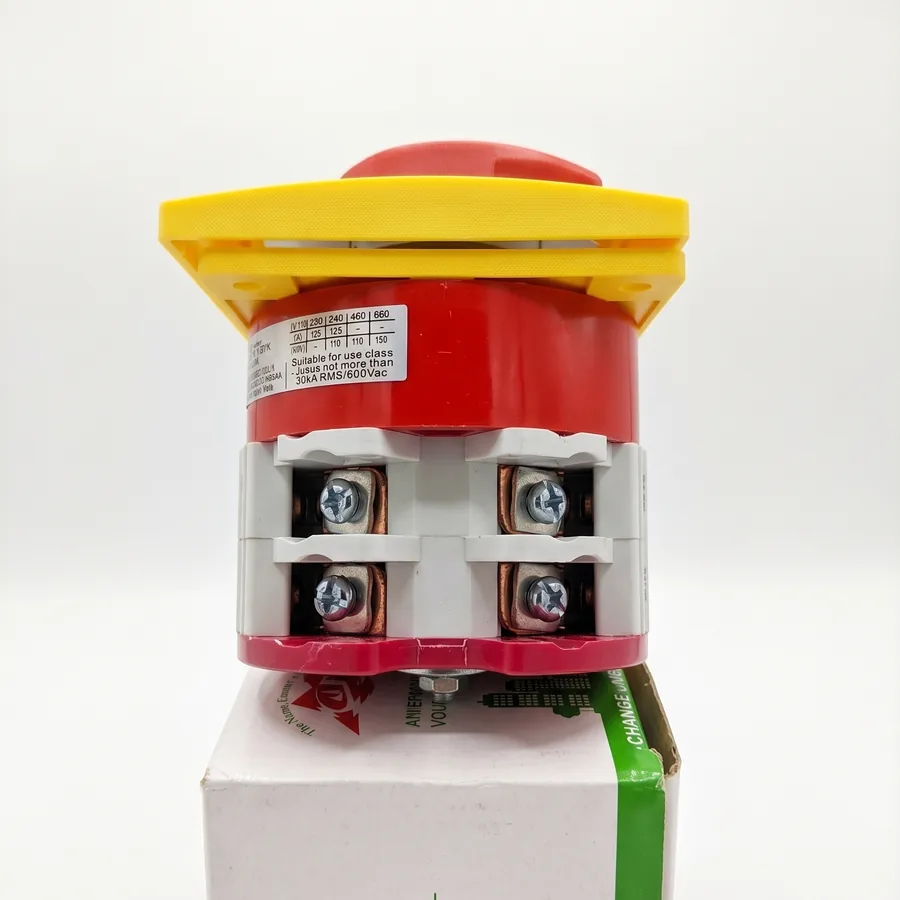

Internal parts are 99.5% copper and the screw terminals torque to 4Nm for a firm connection.
A closer look
Specifications
| Specification | Detail |
|---|---|
| Brand | Hi Tech |
| Model code | HC-263 |
| Type | Rotary cam changeover switch |
| Rated current | 63A |
| Poles | 2-pole (2P) |
| Switch positions | 1-0-2 (source 1 / off / source 2) |

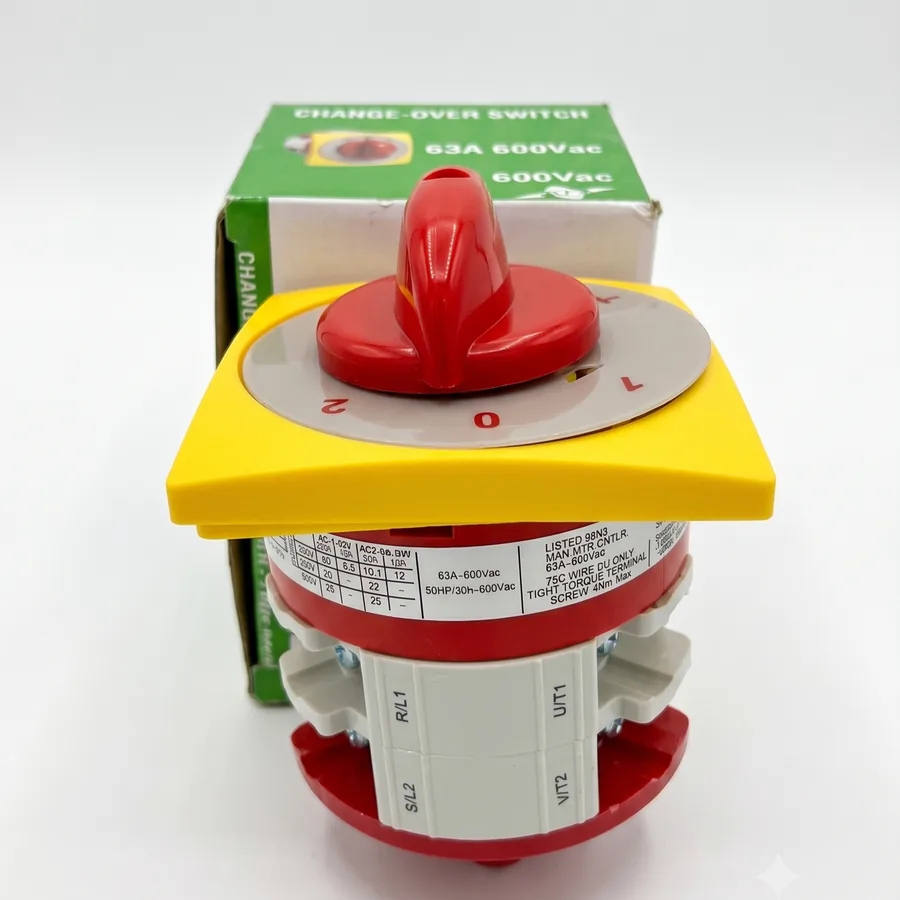

| Rated voltage | Up to 690V AC (600V AC on unit label) |
| Contact material | 99.5% copper |

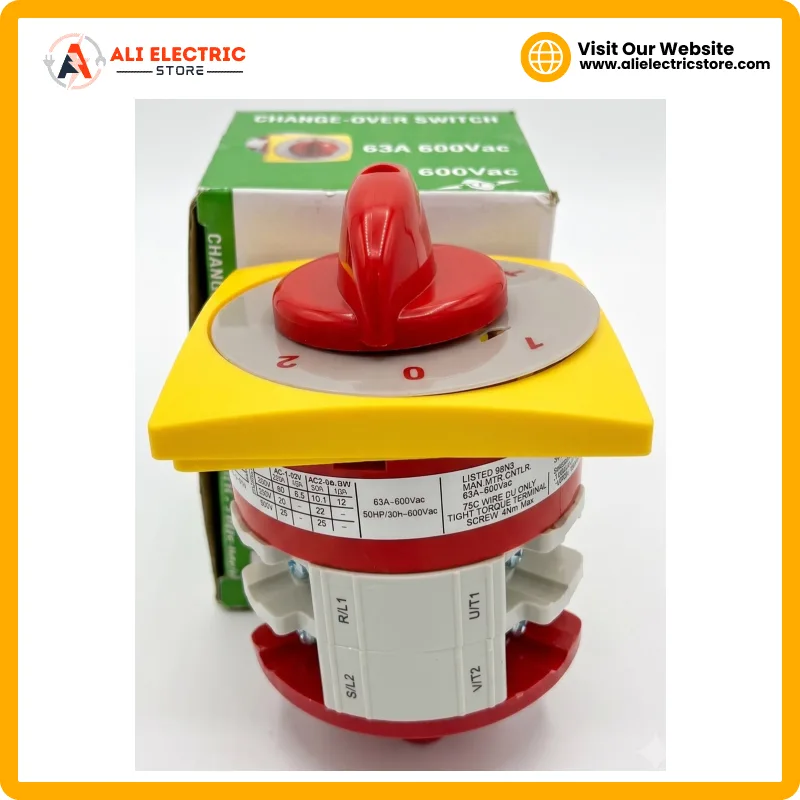

| Terminal markings | R/L1, S/L2, U/T1, V/T2 |
| Terminal torque | 4Nm max |
| Wiring | 75C copper wire only |
| Mounting | Panel or board mount, bolts included |
Good to know
Here’s how people usually wire and use the HC-263:
- Feed your mains supply into one pair of terminals and your generator into the other.
- Take the load out from the common terminals to your board or the circuit you’re switching.
- Turn to 1 for the first source, 0 to disconnect both, and 2 for the second source.
- Keep the load at or under 63A for the pole you’re using.
- Mount it on a panel or inside an enclosure using the bolts that come in the box.
This is a manual switch, so you turn it by hand when the power changes. It doesn’t sense the supply or switch on its own, so for automatic transfer you’d need an ATS instead. Wiring should be done by a qualified electrician.

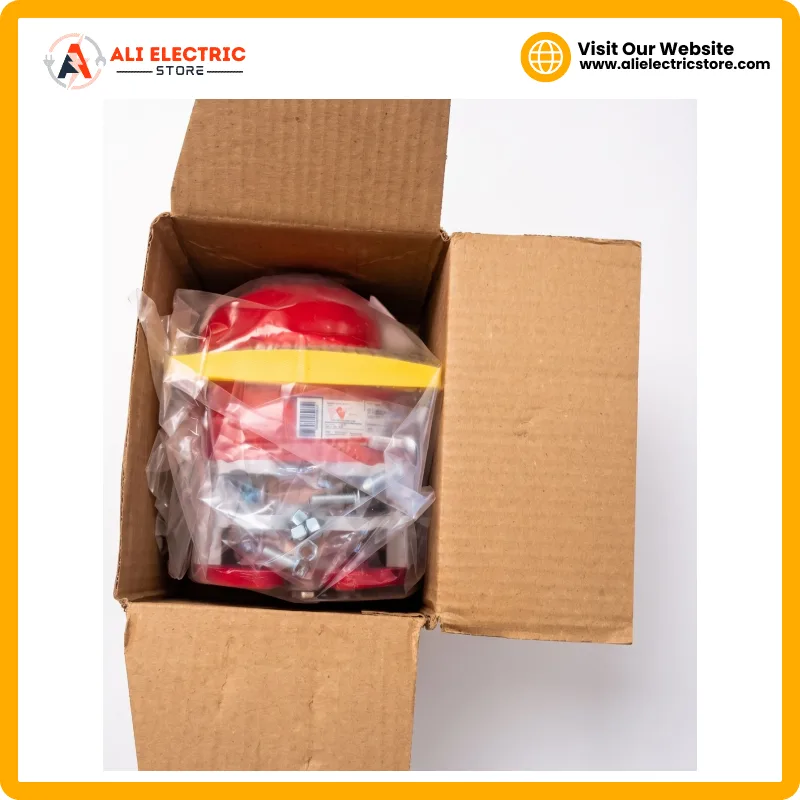

In the box
- 1 x Hi Tech HC-263 changeover switch (63A, 2-pole)

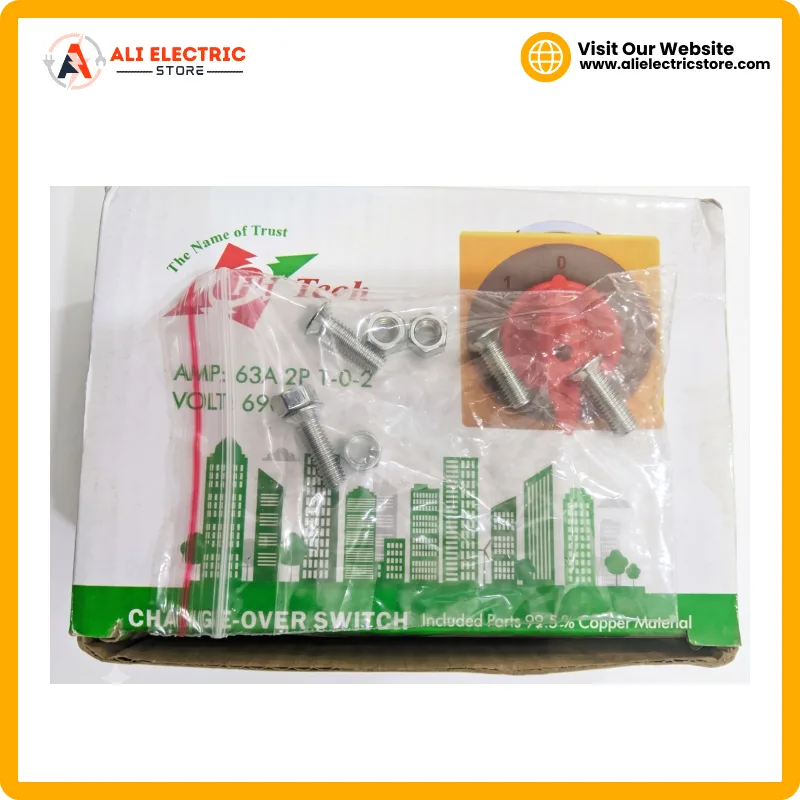

- Mounting bolts and nuts

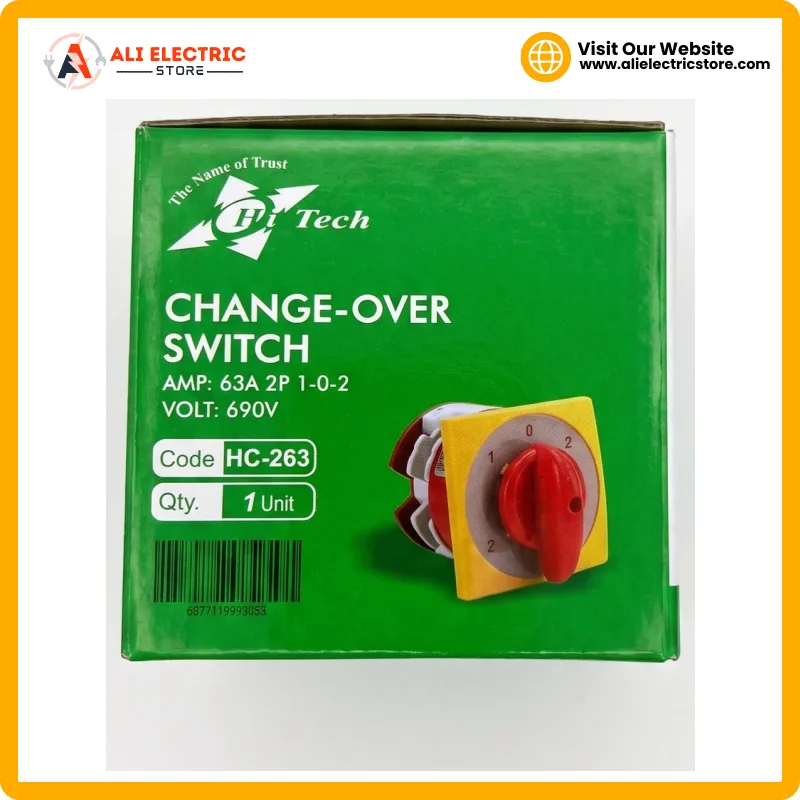

- Retail box
Why it’s worth having
- It handles a common load-shedding need: moving between mains and a generator without rewiring each time.
- The 63A two-pole rating fits most single-phase house and small shop loads.
- The middle 0 position disconnects both sources, which is useful before you switch or work on the line.
- Copper contacts and 4Nm screw terminals give a solid connection for the current it carries.
- It panel mounts and the bolts are included, so install is straightforward for an electrician.
