Hybrid Electric 20A Single Pole MCB Type C 6kA Circuit Breaker (CY-63)
Original price was: ₨ 450.₨ 350Current price is: ₨ 350.
The Hybrid Electric CY-63 is a single pole miniature circuit breaker rated at 20A. It uses a Type C trip curve, so it rides out the normal switch-on surge from lights, sockets and small motors while still cutting the circuit fast on a real fault. It’s got a 6kA breaking capacity and is built to IEC/EN 60898-1, and it clips onto a standard 35mm DIN rail in your distribution board. Wire it in on the live side to protect one circuit against overload and short circuit.
کیش آن ڈیلیوری (COD) آرڈر کے لیے، ڈلیوری چارجز پہلے ادا کرنے ہوں گے۔ آپ کی ادائیگی کی تصدیق ہوتے ہی آرڈر بھیج دیا جائے گا۔
کیش آن ڈیلیوری (COD) آرڈر کے لیے، ڈلیوری چارجز پہلے ادا کرنے ہوں گے۔ آپ کی ادائیگی کی تصدیق ہوتے ہی آرڈر بھیج دیا جائے گا۔
Hybrid Electric 20A Single Pole MCB Type C 6kA Circuit Breaker (CY-63)
Original price was: ₨ 450.₨ 350Current price is: ₨ 350.
Original price was: ₨ 450.₨ 350Current price is: ₨ 350.
Product Highlights
| Brand | Hybrid Electric |
|---|---|
| Model | CY-63 |
| Rating | 20A |
The Hybrid Electric CY-63 is a single pole miniature circuit breaker rated at 20A. It uses a Type C trip curve, so it rides out the normal switch-on surge from lights, sockets and small motors while still cutting the circuit fast on a real fault. It’s got a 6kA breaking capacity and is built to IEC/EN 60898-1, and it clips onto a standard 35mm DIN rail in your distribution board. Wire it in on the live side to protect one circuit against overload and short circuit.
Payment Methods:
Hybrid Electric CY-63 MCB / miniature circuit breaker
Single pole Type C breaker for one home or small shop circuit
The Hybrid Electric 20A single pole MCB is a compact breaker for your consumer unit or distribution board. It watches a single live wire for overload and short circuit, and it trips the toggle down if the current climbs past its limit. The Type C curve is a good match for mixed home and small shop loads that pull a short surge when they start up.
Single circuit
One pole protects a single live wire, so you can run a dedicated breaker for a room, a socket line or one appliance.
Type C curve
Rated to ride out the brief inrush from lights and small motors, then trip if the overload keeps going.
6kA breaking
A 6000A breaking capacity clears a short circuit before the fault can damage your wiring.

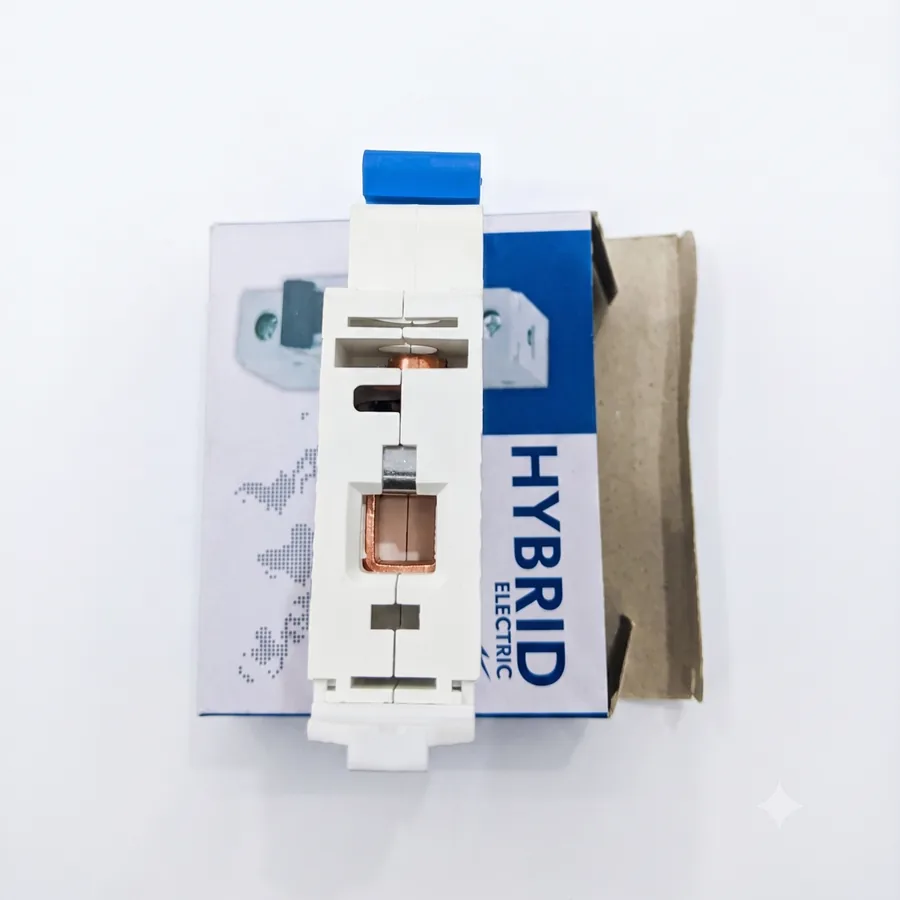

DIN rail fit

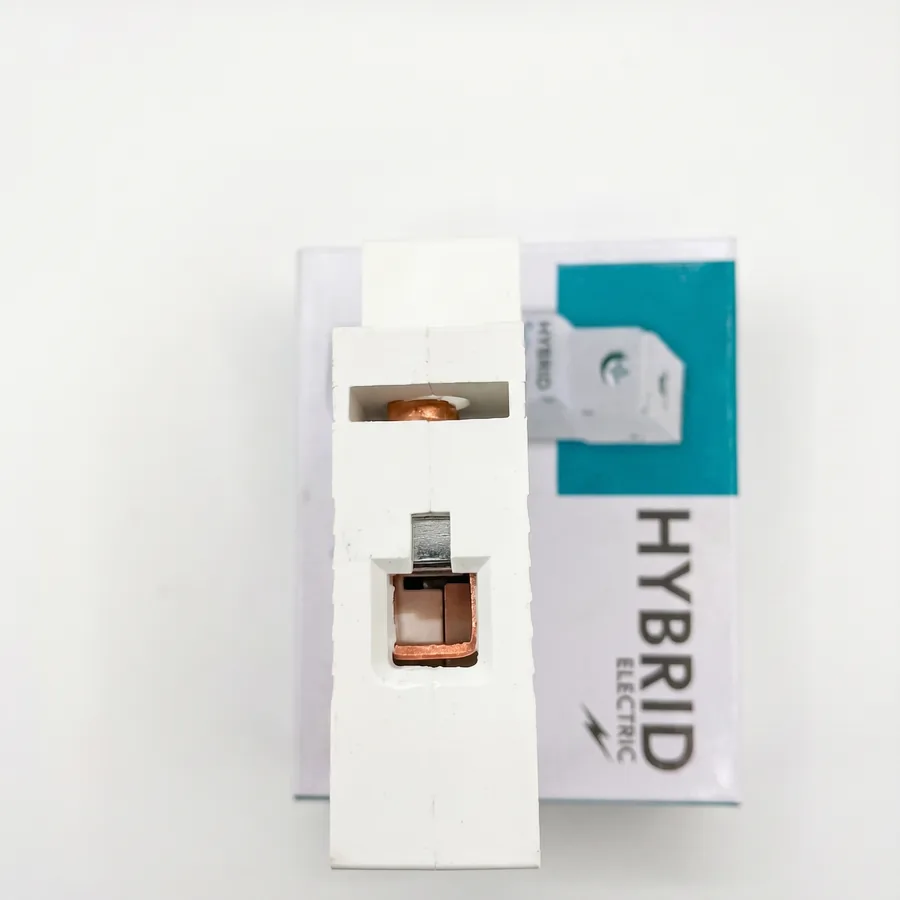

Clips onto a standard 35mm DIN rail, with copper screw terminals top and bottom for a quick install.
A closer look
Specifications
| Specification | Detail |
|---|---|
| Brand | Hybrid Electric |
| Model | CY-63 |
| Type | Miniature circuit breaker (MCB) |
| Poles | Single pole (1P) |
| Rated current | 20A |
| Tripping curve | Type C |
| Rated voltage | 240/415V AC |
| Frequency | 50/60 Hz |
| Breaking capacity | 6000A (6 kA) |
| Standard | IEC/EN 60898-1 |
| Mounting | 35 mm DIN rail |
| Terminals | Screw type (top and bottom) |
Good to know
Where a 20A single pole MCB fits:
- Protecting a single lighting or socket circuit in a home distribution board
- A dedicated breaker for one appliance like a water motor, heater or small pump
- Shop or office sub-circuits that need overload and short-circuit cut-off
- Replacing an old rewirable fuse with a breaker you can reset by hand
- Circuits where a Type C curve suits a short start-up surge
This is a single pole AC breaker built to IEC/EN 60898-1. It switches the live wire only, so keep the neutral separate. Have a qualified electrician wire it into the board and match the breaker rating to the cable size.
In the box
- 1 x Hybrid Electric CY-63 single pole MCB (20A)
- Retail box
Why it’s worth having
- Fits any standard 35mm DIN rail board, so it drops into most Pakistani consumer units.
- 6kA breaking capacity handles a short circuit on typical home and small commercial wiring.
- Type C curve avoids nuisance trips from motor and lamp start-up surges.
- Screw terminals top and bottom take solid or stranded copper wire.
- You reset it by hand after a trip, so there’s no fuse wire to replace.
Order now for delivery across Pakistan.
