Hybrid Electric C32A 2-Pole MCB Circuit Breaker (Type C, 6kA)
Original price was: ₨ 900.₨ 720Current price is: ₨ 720.
A 2-pole, 32A Type C MCB from Hybrid Electric for AC distribution boards. It’s rated 240/415V with a 6kA breaking capacity, and it protects a circuit against overload and short circuit while isolating both wires when switched off. It clips onto a standard 35mm DIN rail and takes copper terminals at the top and bottom.
کیش آن ڈیلیوری (COD) آرڈر کے لیے، ڈلیوری چارجز پہلے ادا کرنے ہوں گے۔ آپ کی ادائیگی کی تصدیق ہوتے ہی آرڈر بھیج دیا جائے گا۔
کیش آن ڈیلیوری (COD) آرڈر کے لیے، ڈلیوری چارجز پہلے ادا کرنے ہوں گے۔ آپ کی ادائیگی کی تصدیق ہوتے ہی آرڈر بھیج دیا جائے گا۔
Hybrid Electric C32A 2-Pole MCB Circuit Breaker (Type C, 6kA)
Original price was: ₨ 900.₨ 720Current price is: ₨ 720.
Original price was: ₨ 900.₨ 720Current price is: ₨ 720.
Product Highlights
| Brand | Hybrid Electric |
|---|---|
| Model | CY-63 (C32A) |
| Rating | 32A |
A 2-pole, 32A Type C MCB from Hybrid Electric for AC distribution boards. It’s rated 240/415V with a 6kA breaking capacity, and it protects a circuit against overload and short circuit while isolating both wires when switched off. It clips onto a standard 35mm DIN rail and takes copper terminals at the top and bottom.
Payment Methods:

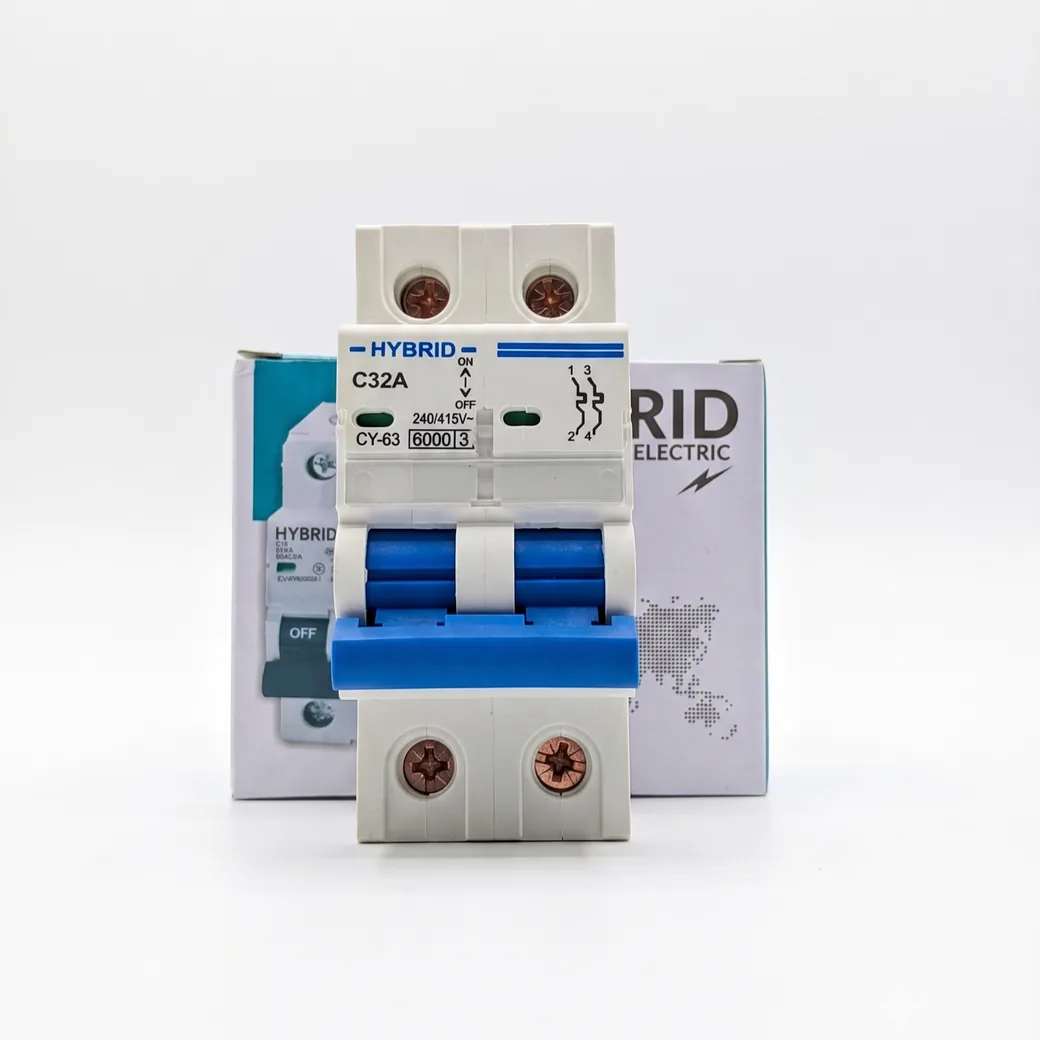

Hybrid Electric CY-63 (C32A) MCB / miniature circuit breaker
2-pole 32A Type C AC breaker, 6kA breaking capacity
The Hybrid Electric C32A 2-pole MCB is a Type C miniature circuit breaker for 240/415V AC circuits. It switches and protects both wires of a single-phase line together, and it’s rated to break a 6000A fault.
Type C tripping
The C curve holds normal inrush from motors and lights, then trips fast on a real short circuit.
Two pole switching
Both wires of the circuit break together, so the line is fully isolated when the breaker is off.
6kA breaking
Rated to clear a 6000A fault, which covers most home and small commercial boards in Pakistan.
DIN rail fit

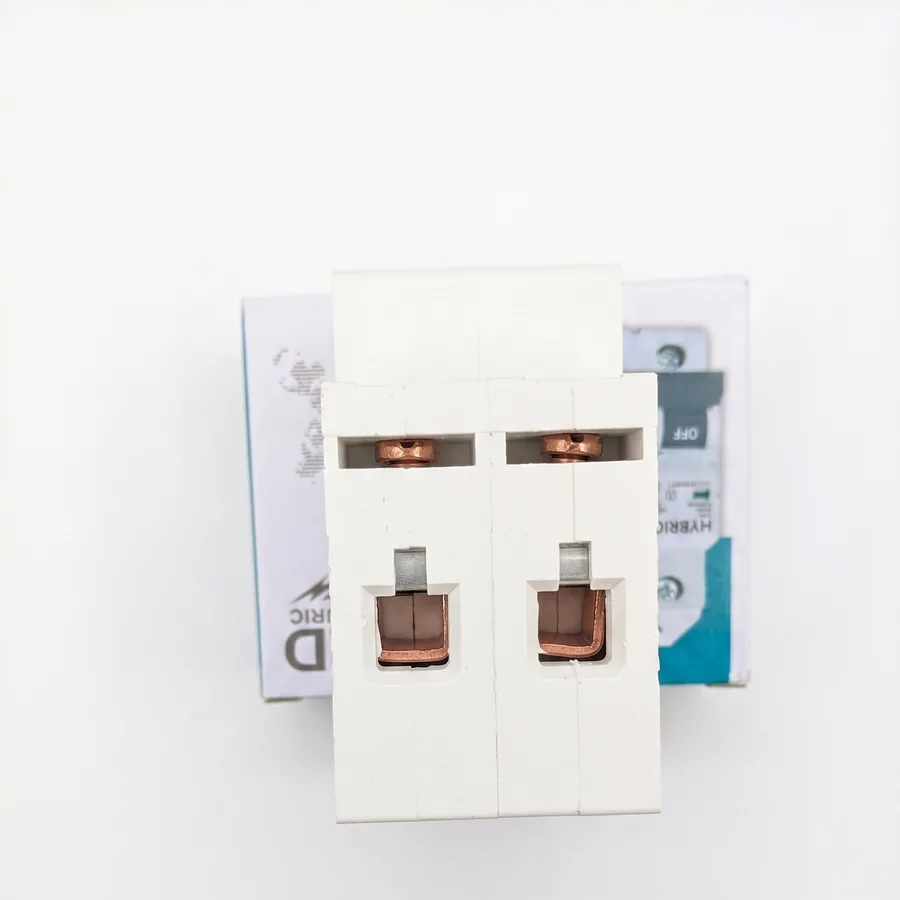

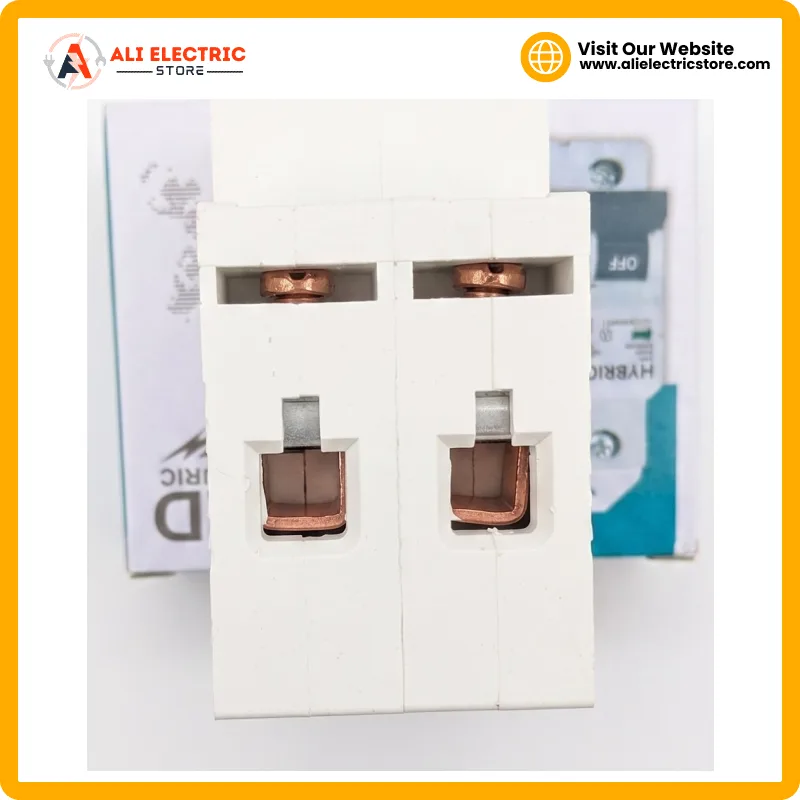

Clips onto a standard 35mm DIN rail and takes copper terminals top and bottom.
A closer look
Specifications
| Specification | Detail |
|---|---|
| Brand | Hybrid Electric |
| Model / series | CY-63 |
| Type | Miniature circuit breaker (MCB) |
| Tripping curve | Type C (C32A) |
| Rated current | 32A |
| Number of poles | 2 pole (2P) |
| Rated voltage | 240/415V AC |
| Breaking capacity | 6000A (6kA) |
| Energy limiting class | Class 3 |
| Terminal material | Copper |
| Mounting | 35mm DIN rail |
| Operation | Manual ON/OFF toggle |
Good to know
This breaker suits a 240/415V AC circuit that draws up to 32A. Here’s where a 2-pole 32A unit usually goes.
- Main or sub-main switch in a home distribution board
- Protecting a heavy circuit such as an AC unit, water pump, or geyser
- A dedicated AC-side line for a UPS or inverter feed
- Isolating both wires of a single-phase circuit at once
- Small shop or office boards that need a 32A double pole cutout
It’s an AC breaker rated 240/415V. Don’t use it on the DC side of a solar array or battery bank, and always size the breaker to the cable and load, not above it.
In the box
- 1 x Hybrid Electric 2-pole 32A MCB (CY-63)
- Retail box
Why it’s worth having
- It’s a 2-pole 32A unit, so it cuts both wires of a single-phase line together
- The Type C curve tolerates motor and lighting inrush without nuisance tripping
- 6kA breaking capacity is enough for typical household and small commercial boards
- Copper terminals and a 35mm DIN rail clip make wiring and mounting straightforward
- A budget option for replacing a faulty breaker or building out a new DB
Order now for delivery across Pakistan.
