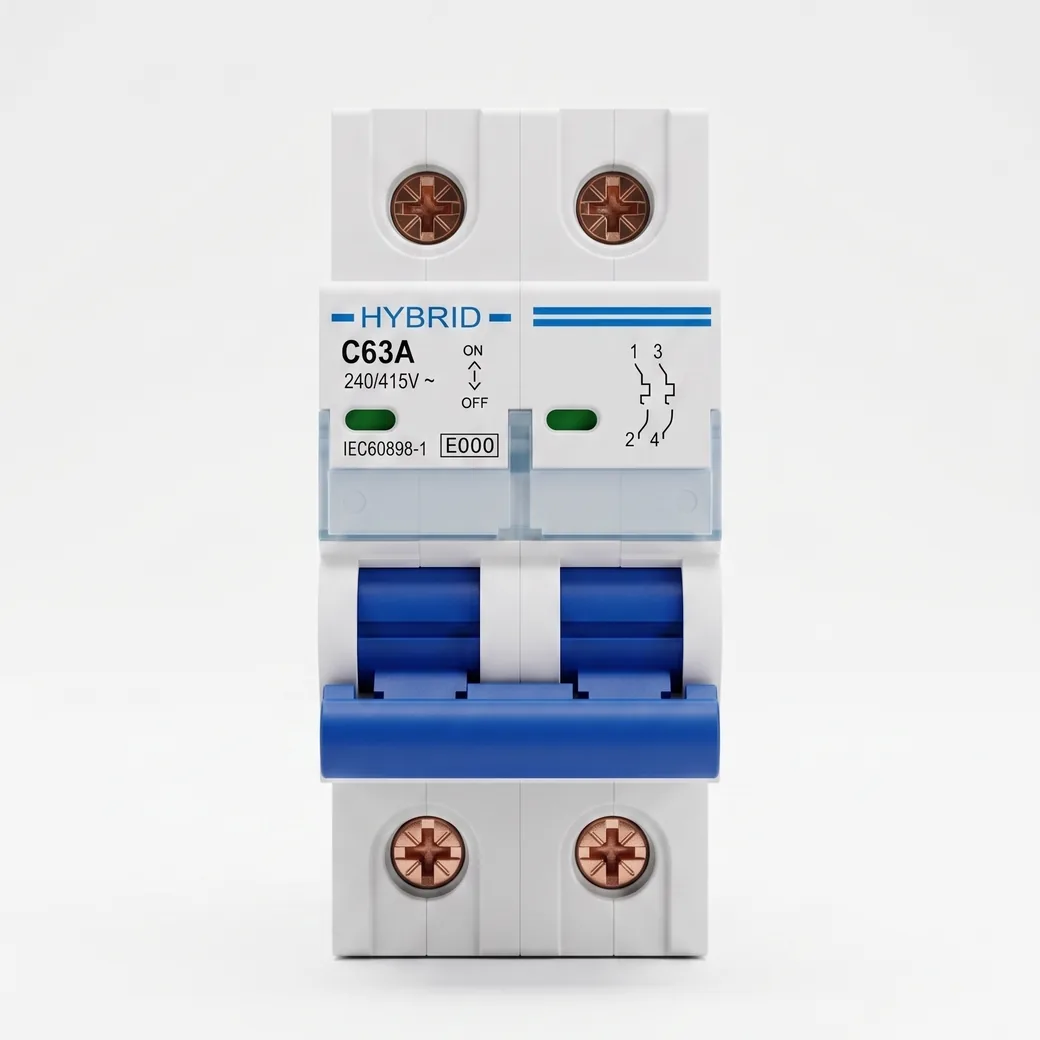

Hybrid Electric 63A Double Pole MCB C-Curve 2P AC Circuit Breaker (240/415V)
Original price was: ₨ 1,100.₨ 850Current price is: ₨ 850.
This is a 63A two-pole miniature circuit breaker from Hybrid Electric, rated for 240/415V AC and built to IEC 60898-1. It’s a Type C breaker, so it copes with the normal start-up surge from motors and pumps but still cuts the supply on an overload or a short circuit. Both live and neutral are switched together, and it clips onto a standard 35mm DIN rail in your distribution board.
کیش آن ڈیلیوری (COD) آرڈر کے لیے، ڈلیوری چارجز پہلے ادا کرنے ہوں گے۔ آپ کی ادائیگی کی تصدیق ہوتے ہی آرڈر بھیج دیا جائے گا۔
کیش آن ڈیلیوری (COD) آرڈر کے لیے، ڈلیوری چارجز پہلے ادا کرنے ہوں گے۔ آپ کی ادائیگی کی تصدیق ہوتے ہی آرڈر بھیج دیا جائے گا۔
Hybrid Electric 63A Double Pole MCB C-Curve 2P AC Circuit Breaker (240/415V)
Original price was: ₨ 1,100.₨ 850Current price is: ₨ 850.
Original price was: ₨ 1,100.₨ 850Current price is: ₨ 850.
Product Highlights
| Brand | Hybrid Electric |
|---|---|
| Model | CY-63 |
| Rating | 63A |
This is a 63A two-pole miniature circuit breaker from Hybrid Electric, rated for 240/415V AC and built to IEC 60898-1. It’s a Type C breaker, so it copes with the normal start-up surge from motors and pumps but still cuts the supply on an overload or a short circuit. Both live and neutral are switched together, and it clips onto a standard 35mm DIN rail in your distribution board.
Payment Methods:
Hybrid Electric CY-63 MCB (miniature circuit breaker)
63A Type C, 2-pole AC breaker for your distribution board
The Hybrid Electric 63A double pole MCB protects a circuit by tripping when the current stays too high for too long or when there’s a short. It switches both poles at once, carries a C-curve rating that handles motor and pump start-up, and mounts on the DIN rail in most Pakistani distribution boards.
63A rated
Handles loads up to 63 amps at 240/415V AC, which suits a main feed or a heavy sub-circuit.
Type C curve
Puts up with the brief start-up surge from motors, pumps and AC units without nuisance tripping.
Two-pole switching
Breaks both live and neutral together, so the circuit is fully isolated when it trips or you switch it off.
DIN rail fit

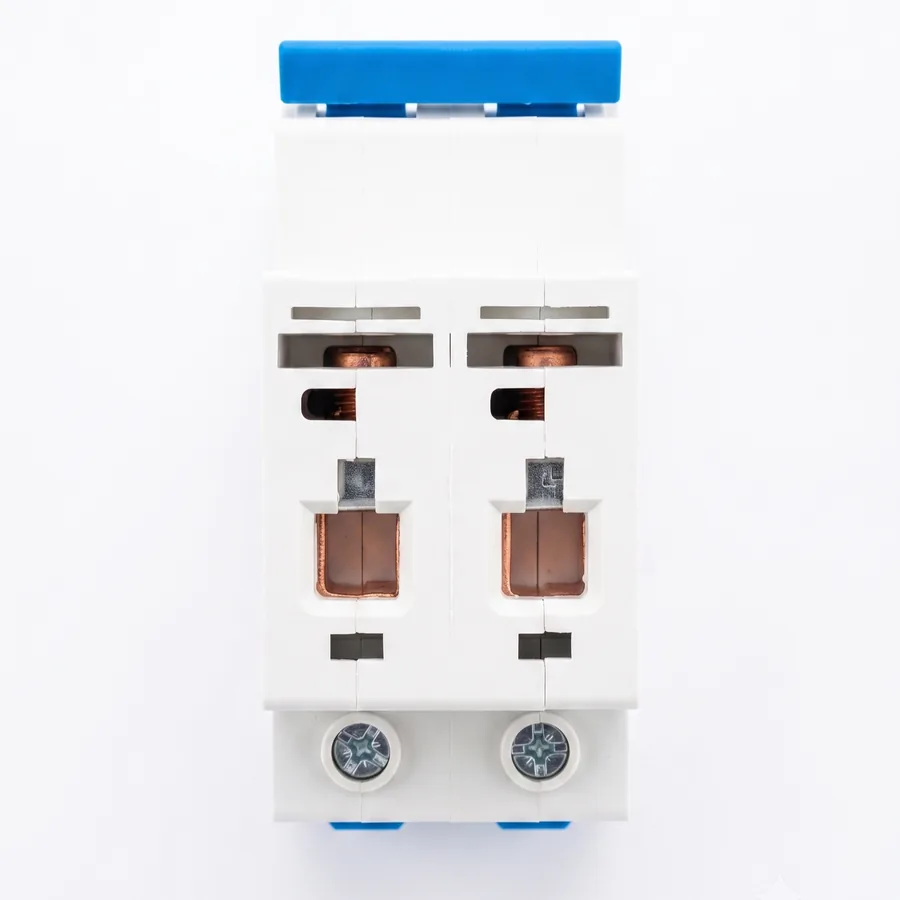

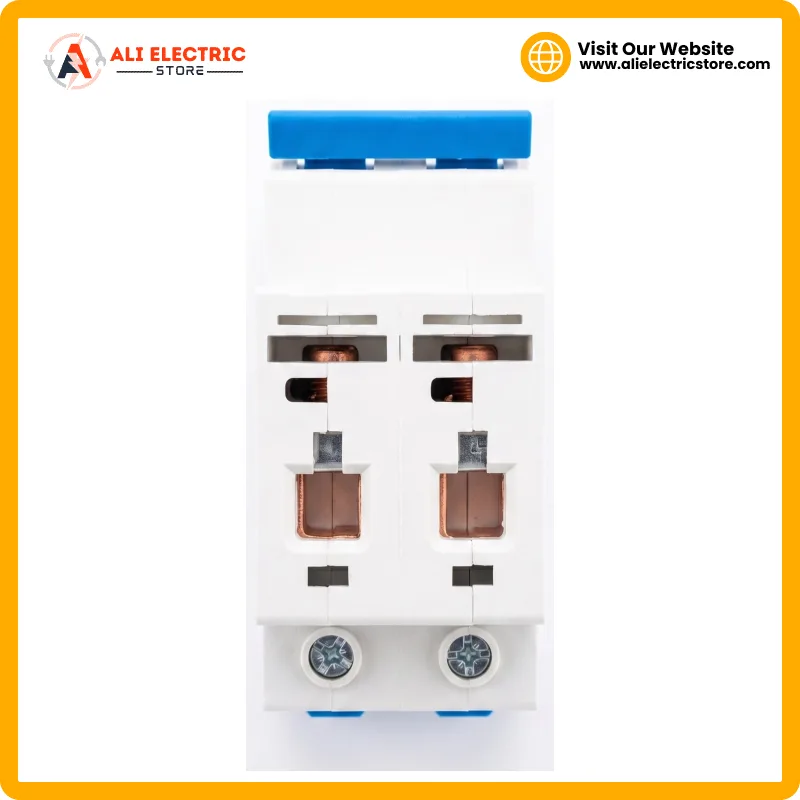

Clips onto a standard 35mm DIN rail, with screw terminals top and bottom for the cables.
A closer look
Specifications
| Specification | Detail |
|---|---|
| Brand | Hybrid Electric |
| Product type | Miniature circuit breaker (MCB) |
| Poles | 2 pole (2P) |
| Rated current | 63 A |
| Tripping curve | Type C |
| Rated voltage | 240/415V AC |
| Current type | AC |
| Frequency | 50/60 Hz |
| Standard | IEC 60898-1 |
| Mounting | 35 mm DIN rail |
| Terminals | Screw terminals (top and bottom) |
| Status window | ON / OFF position indicator |
Good to know
A 63A double pole MCB is usually the main or sub-main breaker in a home or small shop board. Common places you’d use it:
- As the main incoming breaker in a single-phase distribution board
- Protecting a heavy sub-circuit such as an AC unit, water pump or geyser
- Isolating both live and neutral for safe work on a circuit
- Feeding a smaller sub-board from a larger main board
- On an inverter or UPS changeover line where the load stays within 63A
Match the breaker rating to your cable size and load. A 63A MCB is only as safe as the wiring behind it, so have an electrician confirm the cable can carry 63A. This is an AC breaker to IEC 60898-1, so don’t use it on a DC solar circuit.
In the box
- 1 x Hybrid Electric 63A double pole MCB (2P)
- Retail box
Why it’s worth having
- Two poles in one unit, so it isolates live and neutral together
- Type C curve, the usual choice for mixed home and motor loads
- Built to IEC 60898-1, the standard for household AC circuit breakers
- Standard 35mm DIN rail size, so it drops into most existing boards
- 63A rating covers a main feed or a large appliance circuit without a bigger breaker
Order now for delivery across Pakistan.
