Schneider SF219G 63A 2-Pole Manual Changeover Switch for Mains & Generator

Name: Schneider SF219G 63A 2-Pole Manual Changeover Switch for Mains & Generator
SKU: SCHNEIDER-CHANGEOVER-63A
Price: 1700 PKR
Availability: InStock

Original price was: ₨ 2,200.Current price is: ₨ 1,700.

Compare

The Schneider SF219G is a 63A two-pole manual changeover switch for moving a circuit between two supplies, like WAPDA mains and a generator. Both poles switch together on one green handle, and the eight numbered terminals keep the wiring clear. It clips onto a standard 35mm DIN rail and takes two module slots in your board. It’s rated 400V, 50Hz.

کیش آن ڈیلیوری (COD) آرڈر کے لیے، ڈلیوری چارجز پہلے ادا کرنے ہوں گے۔ آپ کی ادائیگی کی تصدیق ہوتے ہی آرڈر بھیج دیا جائے گا۔

Schneider SF219G 63A 2-Pole Manual Changeover Switch for Mains & Generator

Original price was: ₨ 2,200.Current price is: ₨ 1,700.

Compare

100 People watching this product now!

Product Highlights

Brand	Schneider Electric
Model	SF219G
Rating	63A

Payment Methods:

Description
Reviews (0)

⚡ 63A

Schneider Electric SF219G Manual changeover switch

63A two-pole manual changeover for mains and generator

🔀 Two source switching⚡ 63A rating🔩 Screw terminals🧰 DIN rail fit

Schneider Electric SF219G Manual changeover switch

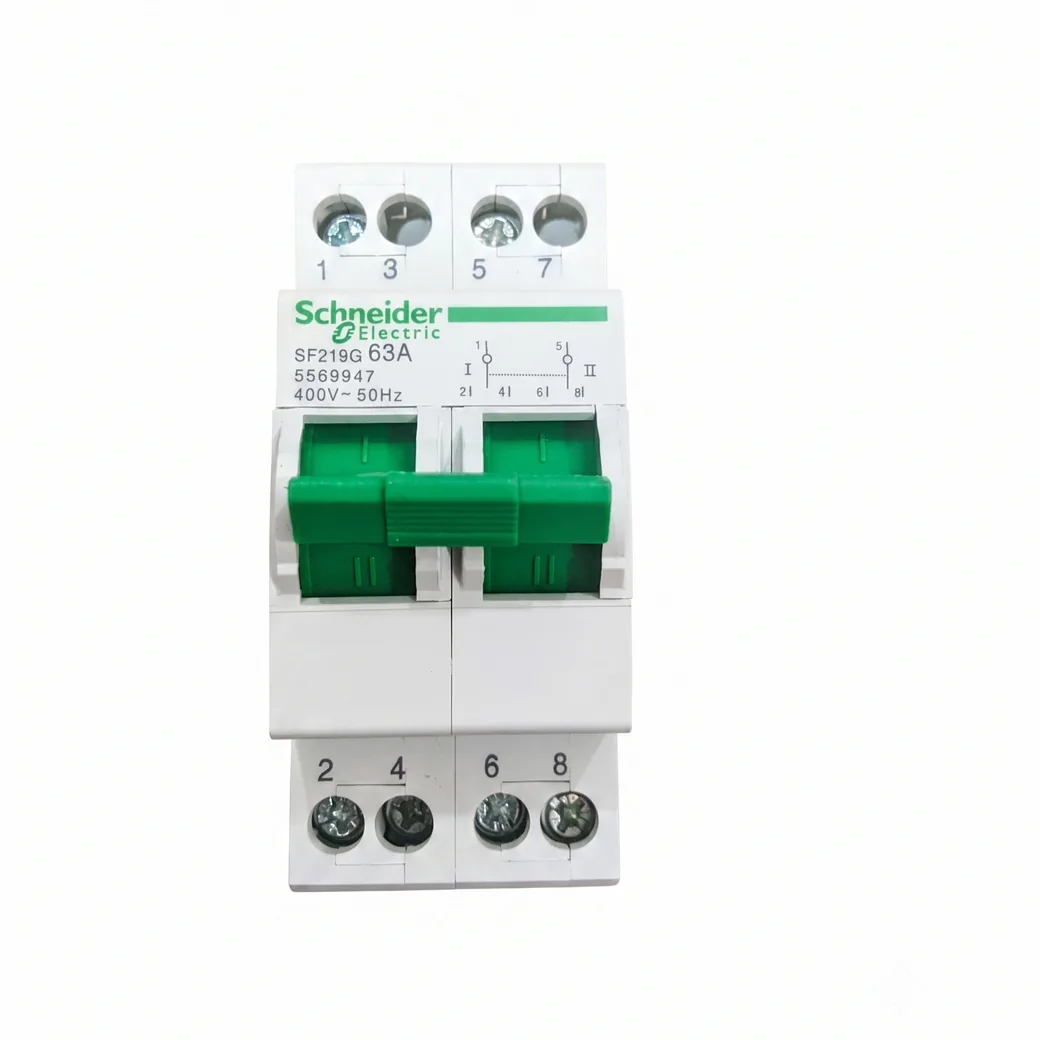

The Schneider SF219G is a 63A, two-pole changeover switch you flip by hand to move your line between the mains and a generator. It’s a DIN rail module, so it sits in the distribution board right next to your breakers, and the linked green handle throws both poles in one move.

🔀

Two source switching

Moves your circuit between mains and generator by hand. Both poles move together on one green handle.

⚡

63A rating

Rated for 63A at 400V, so it suits a whole-house or shop main line.

🔩

Screw terminals

Eight numbered screw terminals, 1-3-5-7 on top and 2-4-6-8 along the bottom, for both sources.

🧰

DIN rail fit

Clips onto a standard 35mm DIN rail and takes two module slots in the distribution board.

A closer look

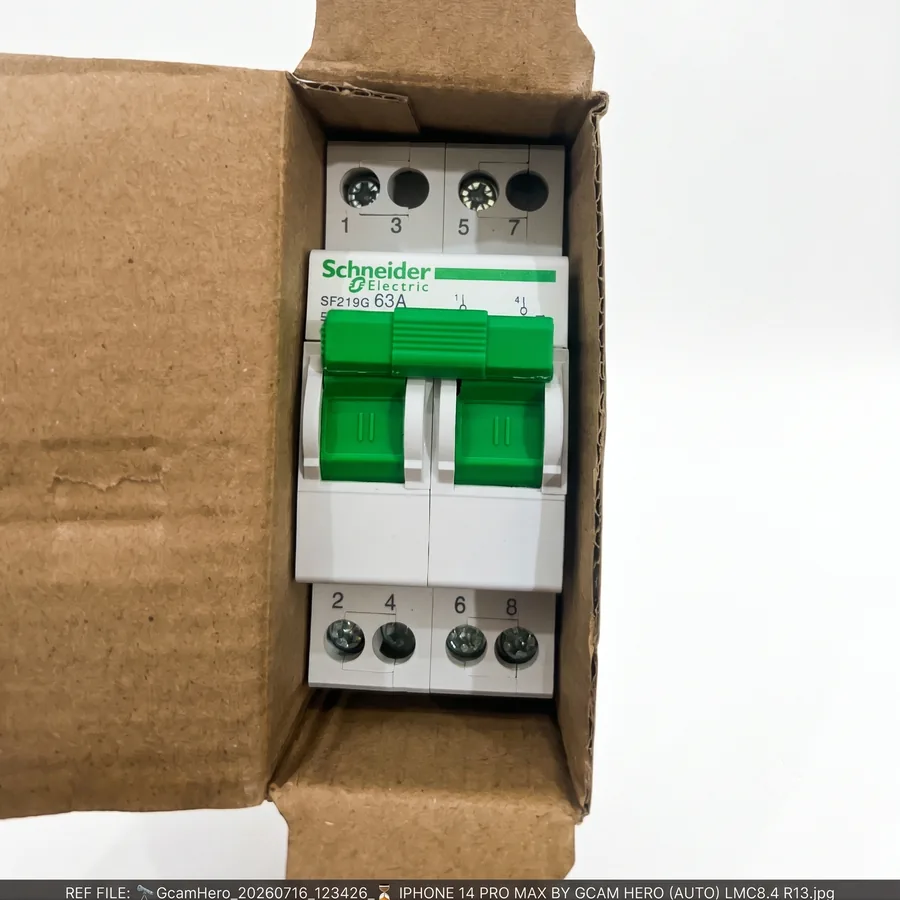

The front reads SF219G 63A with numbered screw terminals, 1-3-5-7 across the top and 2-4-6-8 along the bottom.

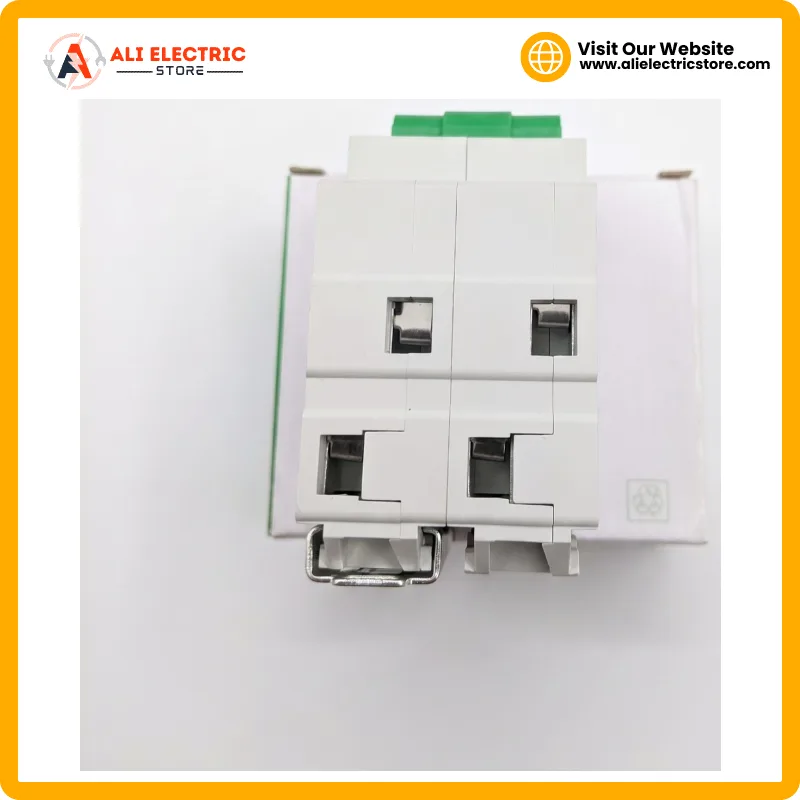

Side view of the metal DIN rail clip and the open terminal slots that take the incoming and outgoing cables.

Specifications

Specification	Detail
Brand	Schneider Electric (branded)
Model	SF219G
Reference no.	5569947
Rated current	63A
Poles	2-pole (2P)
Rated voltage	400V AC
Frequency	50Hz
Switch positions	I / II (two-way)
Terminals	8 screw terminals (1-3-5-7 / 2-4-6-8)
Operation	Manual, linked green handle for both poles
Mounting	35mm DIN rail
Width	2 modules

Good to know

Here’s where a 63A changeover like this fits in a normal setup:

Switch a house or shop main line between WAPDA and a generator
Keep the two supplies apart so they never feed into each other
Handle loads up to 63A on a single-phase or 400V line
Mount inside a DIN rail distribution board beside your breakers
Throw both poles at once with the linked green handle

This is a manual switch, so someone has to flip it when the power changes. It does not start the generator or sense the supply on its own. Have it wired by an electrician and size the incoming cable for the full 63A.
