UA 203+ Digital Clamp Meter 600A with NCV, AC/DC Voltage, Resistance & Frequency
Original price was: ₨ 3,500.₨ 2,700Current price is: ₨ 2,700.
The UA 203+ digital clamp meter reads AC current up to 600A by clamping its jaw around a single wire, so you don’t have to break the circuit. It also measures AC and DC voltage to 600V, resistance, capacitance and frequency, and has a non-contact voltage (NCV) mode to spot live wires. It’s rated CAT III 300V and CAT II 600V, and ships with test leads, batteries and a carry pouch.
کیش آن ڈیلیوری (COD) آرڈر کے لیے، ڈلیوری چارجز پہلے ادا کرنے ہوں گے۔ آپ کی ادائیگی کی تصدیق ہوتے ہی آرڈر بھیج دیا جائے گا۔
کیش آن ڈیلیوری (COD) آرڈر کے لیے، ڈلیوری چارجز پہلے ادا کرنے ہوں گے۔ آپ کی ادائیگی کی تصدیق ہوتے ہی آرڈر بھیج دیا جائے گا۔
UA 203+ Digital Clamp Meter 600A with NCV, AC/DC Voltage, Resistance & Frequency
Original price was: ₨ 3,500.₨ 2,700Current price is: ₨ 2,700.
Original price was: ₨ 3,500.₨ 2,700Current price is: ₨ 2,700.
Product Highlights
| Brand | UA |
|---|---|
| Model | 203+ |
| Rating | 600A AC clamp meter |
The UA 203+ digital clamp meter reads AC current up to 600A by clamping its jaw around a single wire, so you don’t have to break the circuit. It also measures AC and DC voltage to 600V, resistance, capacitance and frequency, and has a non-contact voltage (NCV) mode to spot live wires. It’s rated CAT III 300V and CAT II 600V, and ships with test leads, batteries and a carry pouch.
Payment Methods:

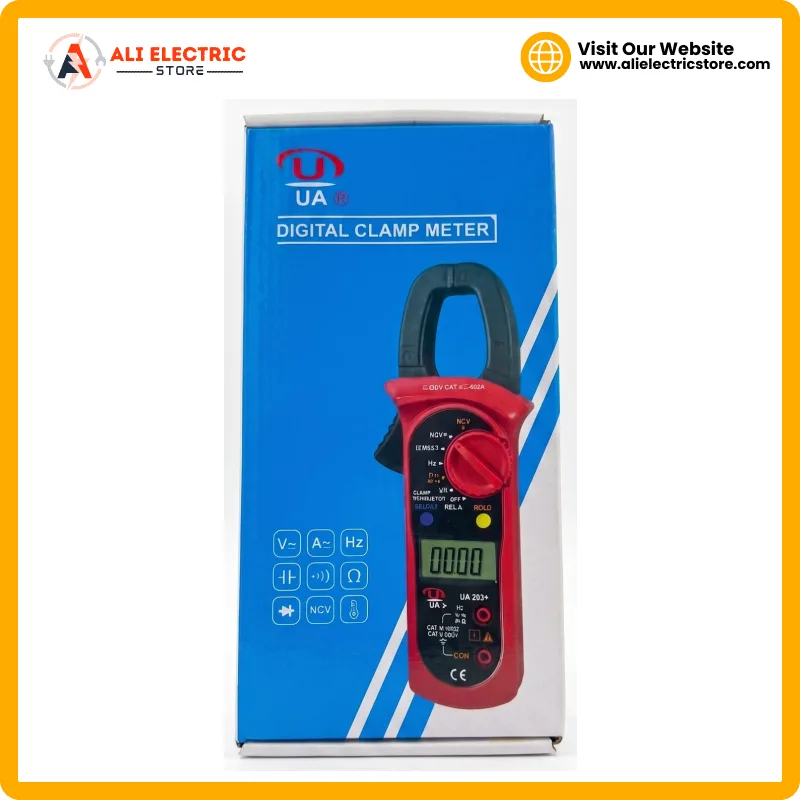

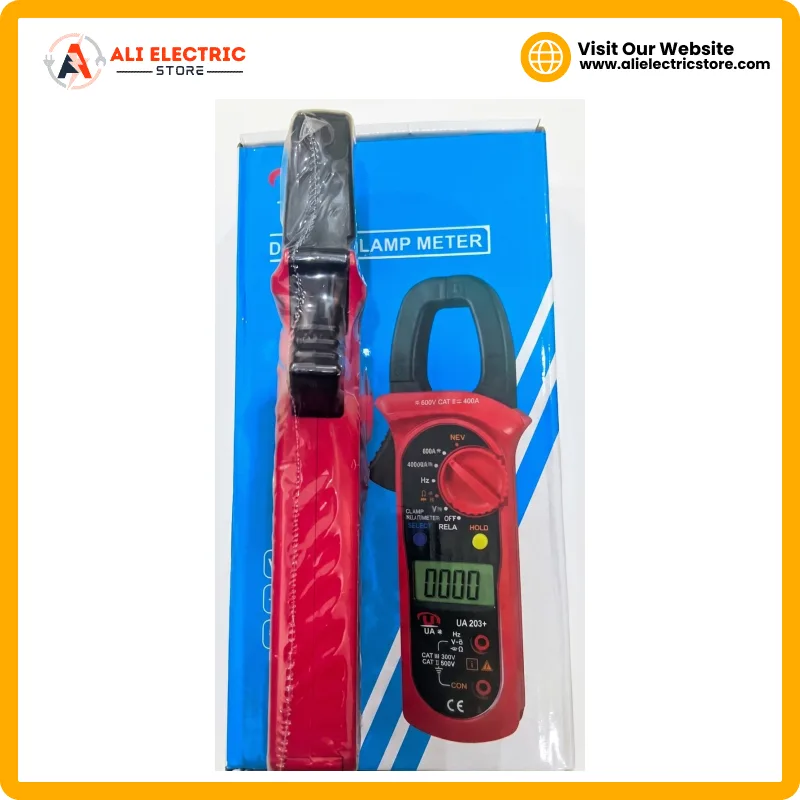

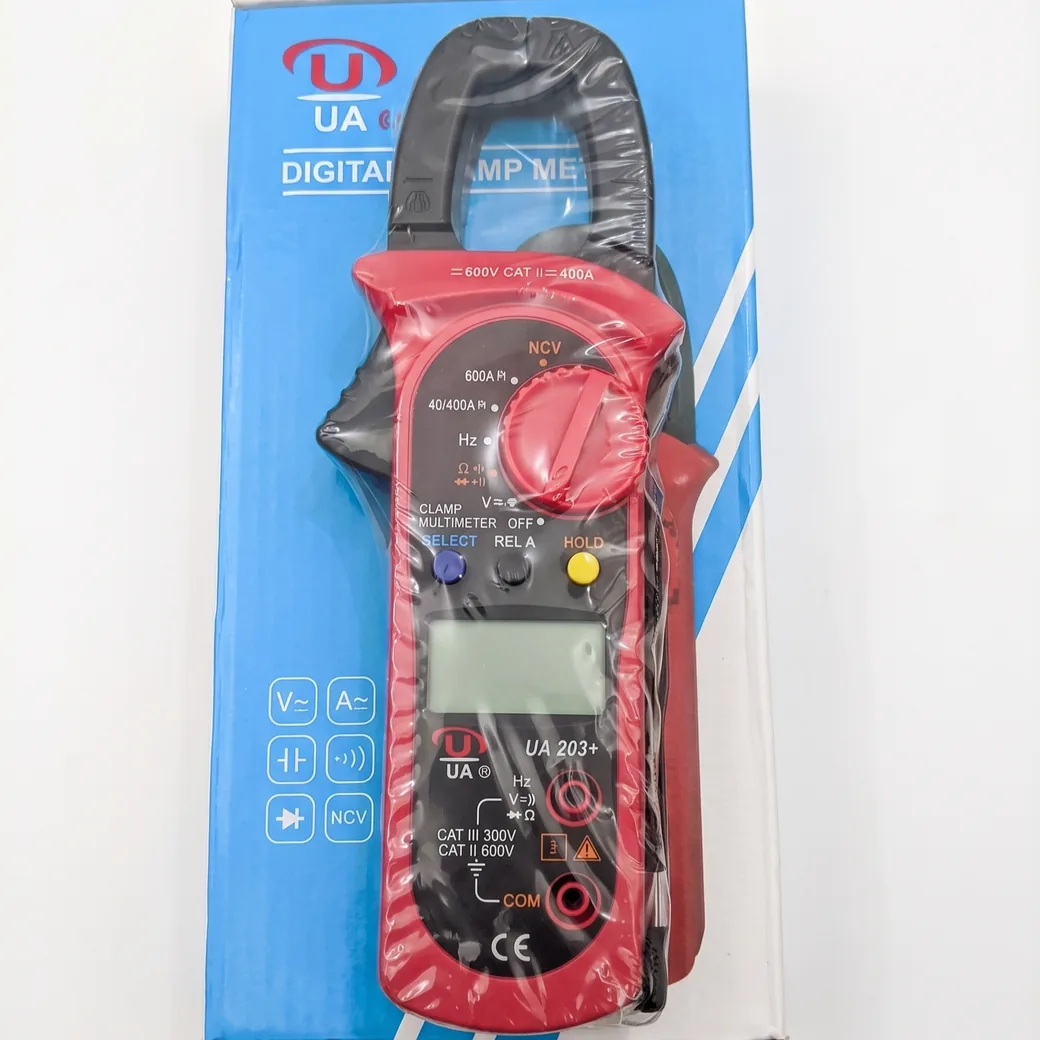

UA 203+ Digital clamp meter
Handheld 600A AC clamp meter with voltage, resistance and NCV
The UA 203+ is a handheld digital clamp meter that reads AC current up to 600A just by clamping its jaw around a wire. It also works as a multimeter for voltage, resistance, capacitance, frequency, continuity and diode checks, so one tool covers most everyday electrical work.
Clamp on current
Open the jaw around a single live wire and read AC current up to 600A without cutting or disconnecting anything.
Voltage and more
Reads AC and DC voltage to 600V, plus resistance, capacitance, frequency, continuity and diode test from one dial.
NCV detection
The non-contact mode senses voltage near a wire or socket so you can check if a line is dead before you work on it.
Ready to use
Comes with test leads, two AAA batteries and a zip pouch, so it’s set to work the moment you open the box.
A closer look
Specifications
| Specification | Detail |
|---|---|
| Model | UA 203+ |
| Type | Digital clamp meter with multimeter |
| AC current ranges | 40A, 400A, 600A |
| Voltage | AC and DC, up to 600V |
| Resistance | Yes (ohms) |
| Capacitance | Yes |
| Frequency | Yes (Hz) |
| Continuity and diode test | Yes |
| Non-contact voltage (NCV) | Yes |
| Safety rating | CAT III 300V / CAT II 600V |
| Display | Digital LCD |
| Power | 2 x AAA batteries |
Good to know
The UA 203+ covers the checks most electricians and DIY users need around a house, a shop, or a small generator setup.
- Clamp the jaw around one wire to read AC current up to 600A, with 40A and 400A ranges for smaller loads.
- Check AC or DC voltage up to 600V with the red and black test leads.
- Test resistance, continuity and diodes to trace faults in wiring and appliances.
- Measure capacitance and frequency in Hz from the same dial.
- Use the NCV mode to sense live voltage near a wire or socket without touching bare metal.
- Freeze a reading on screen with the HOLD button when you can’t see the display while probing.
Clamp only one conductor at a time, not the whole cable, or the reading cancels out. The current jaw is for AC, so it won’t read DC amps. Stay within the CAT III 300V and CAT II 600V limits marked on the body.

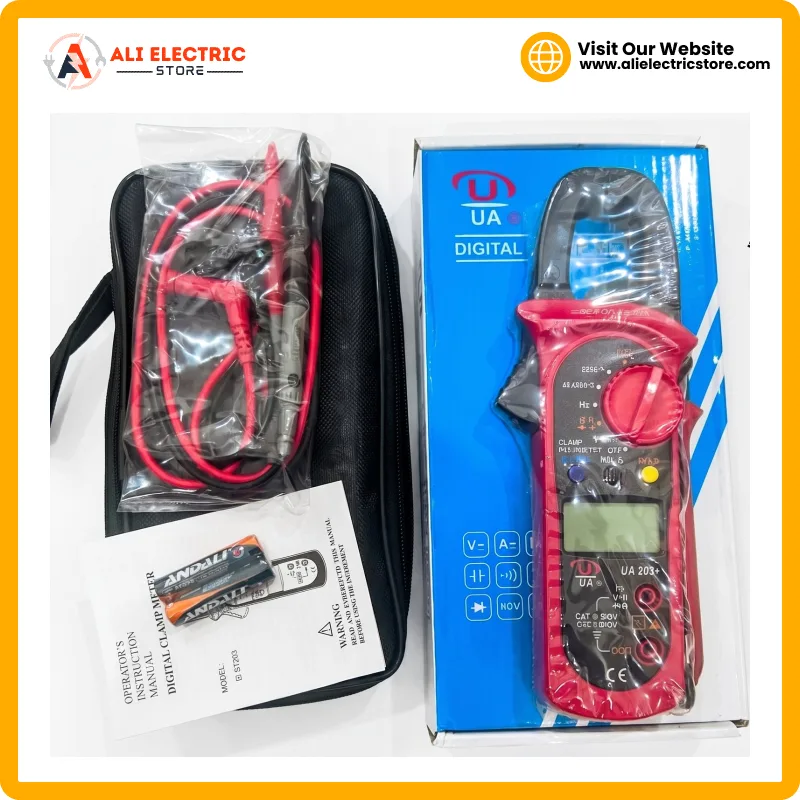

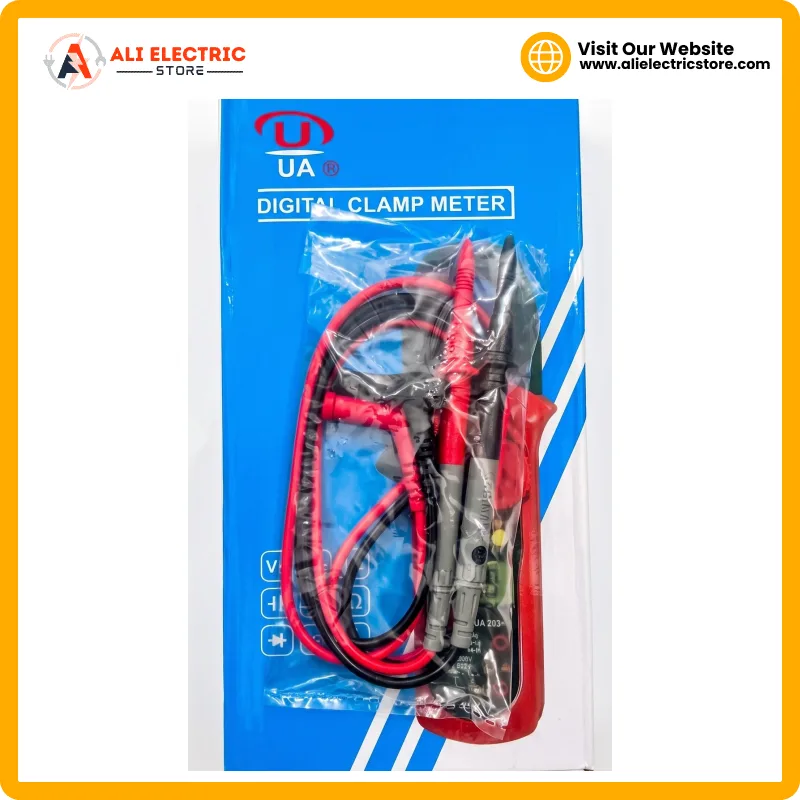

In the box
- UA 203+ clamp meter

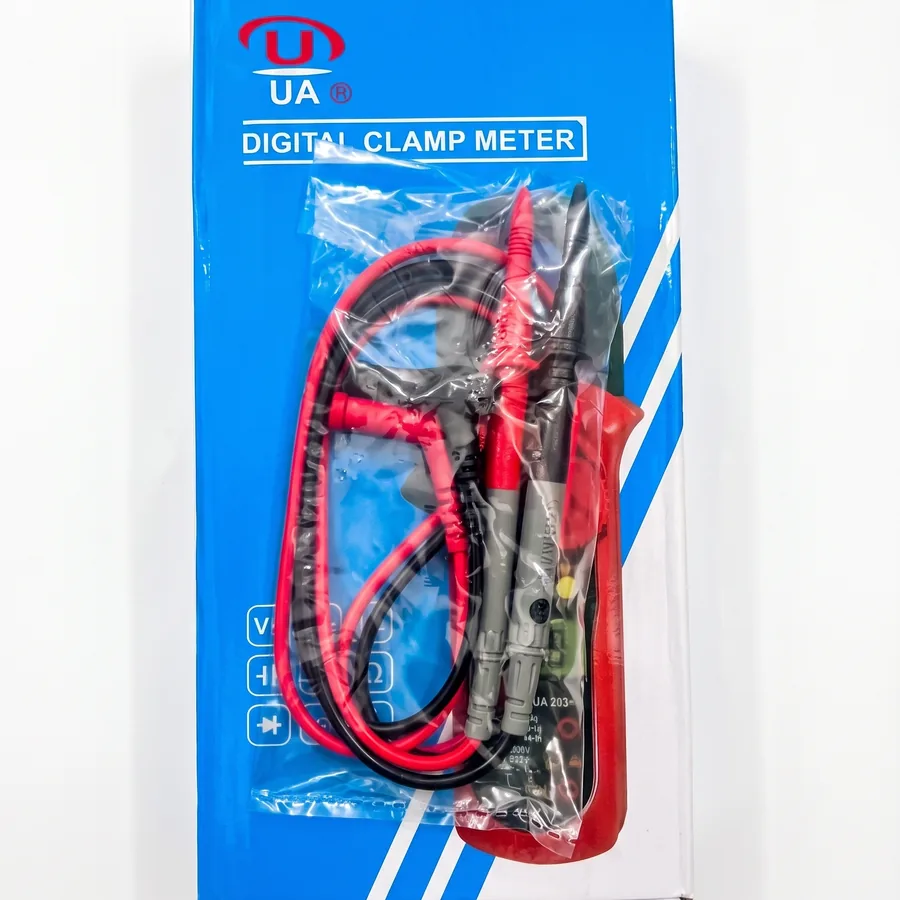

- Pair of test leads (red and black)

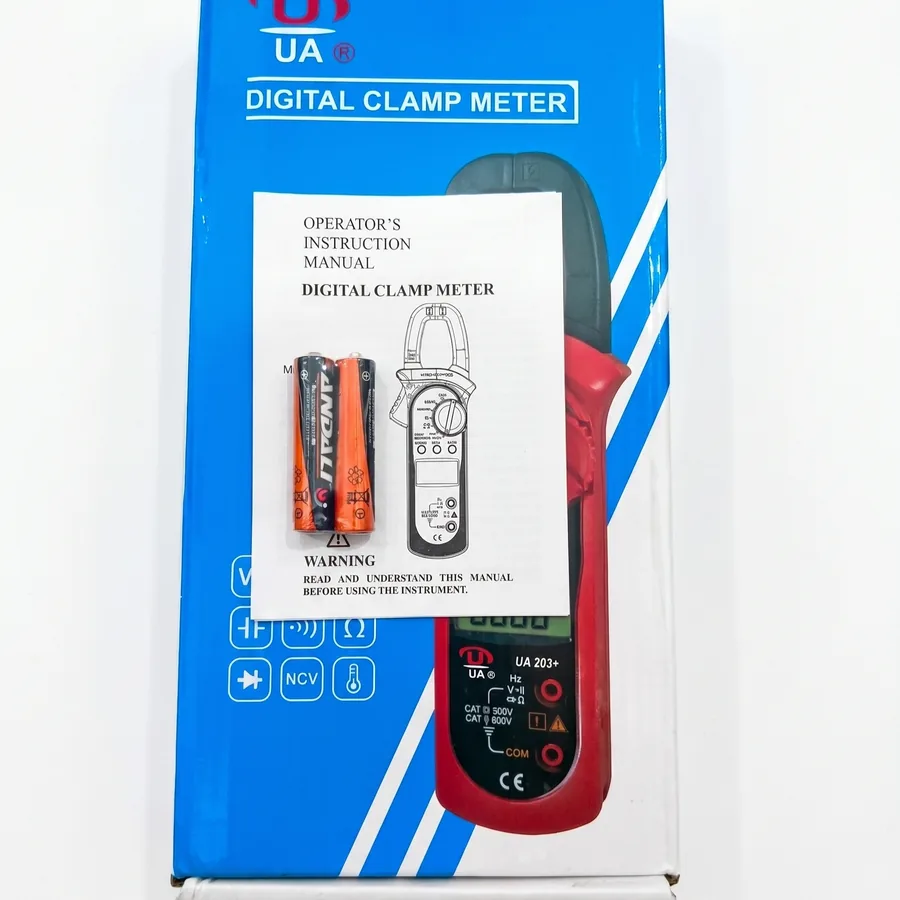

- 2 x AAA batteries

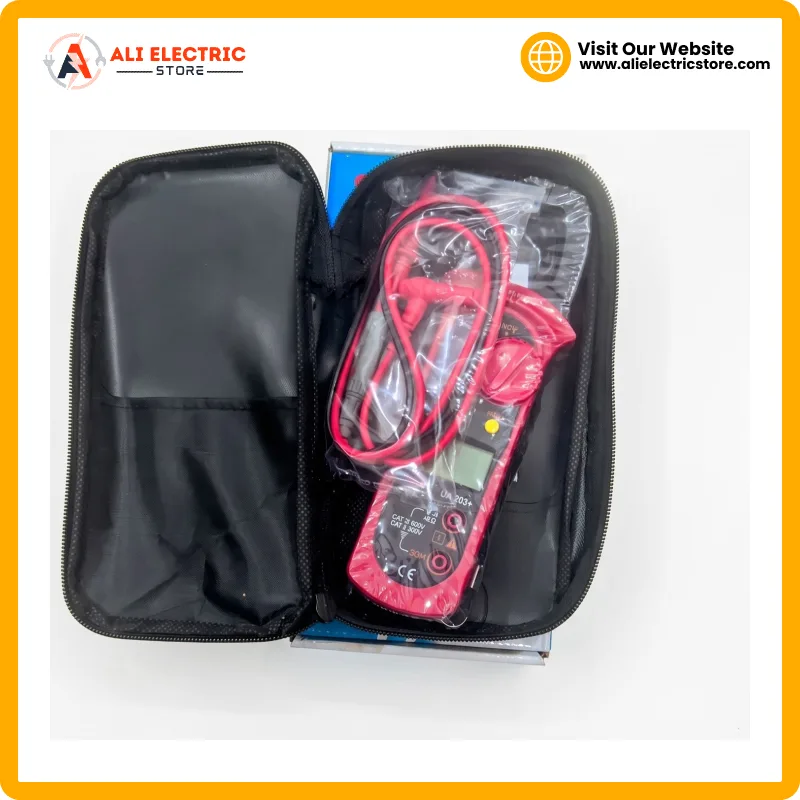

- Soft zip carry pouch

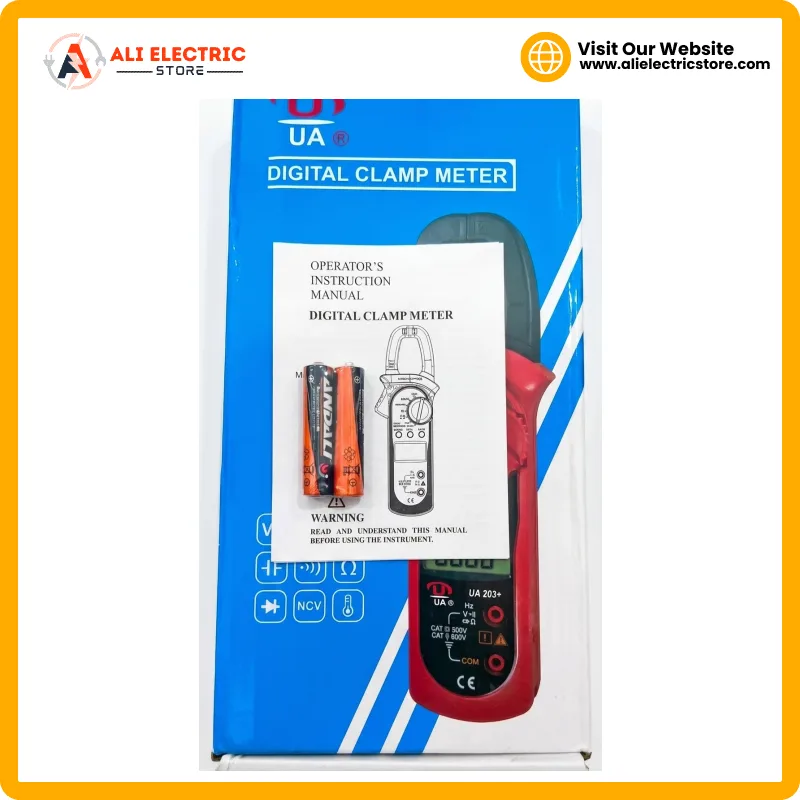

- Instruction manual
Why it’s worth having
- One tool checks current, voltage, resistance, capacitance, frequency, continuity and diodes.
- The clamp jaw reads current without cutting or disconnecting any wire.
- NCV mode lets you find a live wire before you touch it.
- It arrives complete with leads, batteries and a pouch, so there’s nothing else to buy.
- Compact size fits in a tool bag or drawer for quick jobs.
Order now for delivery across Pakistan.
