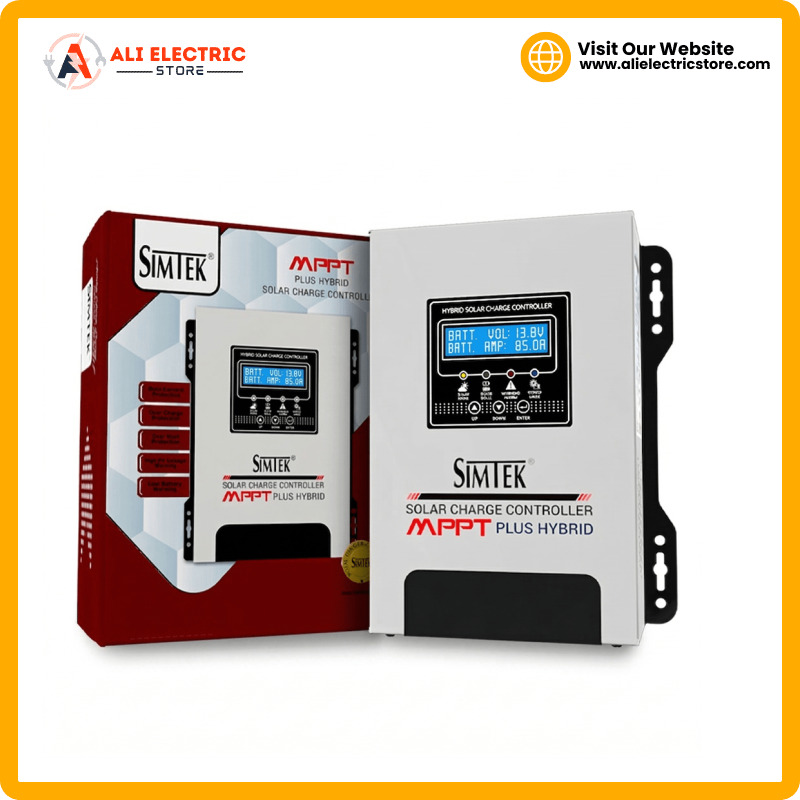

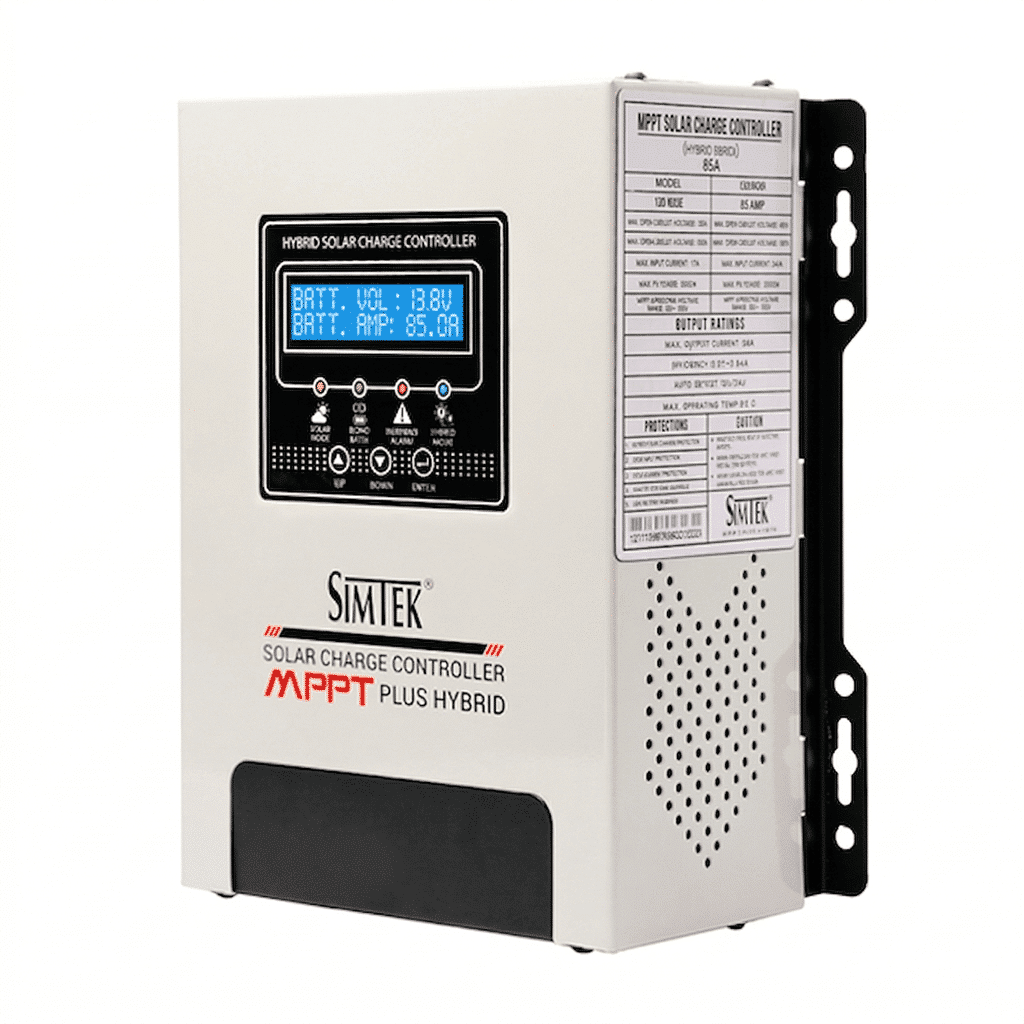

Simtek MPPT Plus Hybrid Solar Charge Controller — 150V VOC 85A
Fully automatic, high-efficiency MPPT technology for 12V/24V battery systems
✅ 150V VOC Input
⚡ 85A Rated Current
🔋 Auto 12V/24V Detection
📊 Dual LCD & LED Display
🛡️ Multi-Protection System
⚡ 85A Rated Current
🔋 Auto 12V/24V Detection
📊 Dual LCD & LED Display
🛡️ Multi-Protection System
High-Efficiency MPPT Technology
Tracks maximum power point in real-time, extracting up to 30% more energy from your solar panels compared to PWM controllers.
Auto Voltage Detection
Automatically detects 12V or 24V battery systems — no manual configuration needed for a plug-and-play setup.

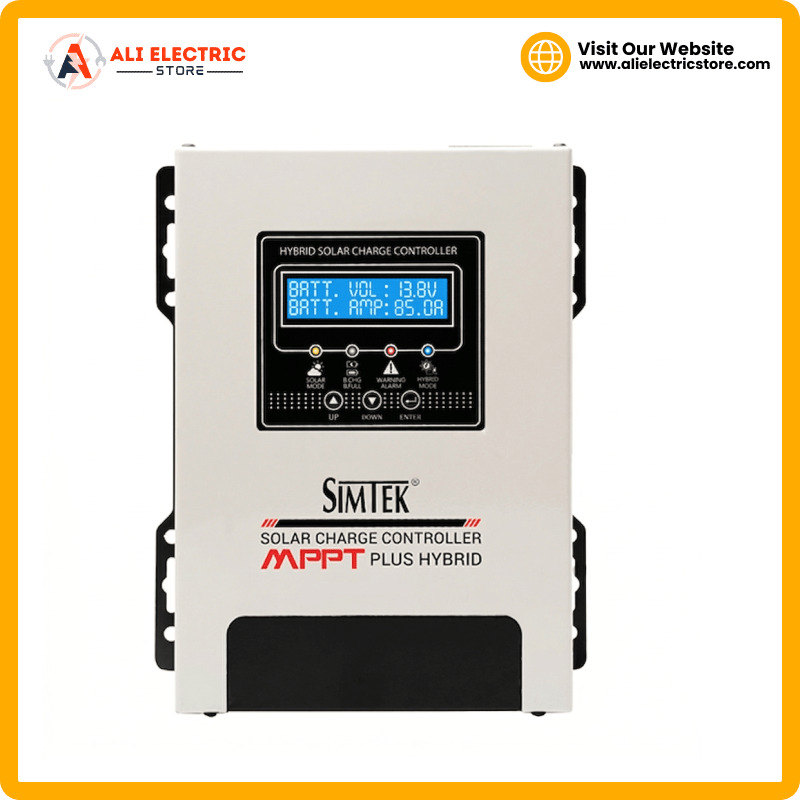

Dual LCD & LED Display
Real-time monitoring of solar input voltage, battery voltage, charging current, and load status all in one clear display.
Comprehensive Protection
Built-in overcharge, over-discharge, overload, short-circuit, and reverse polarity protection for long-lasting safety.
| Specification | Value |
|---|---|
| Max PV Input Voltage (VOC) | 150V |
| Rated Charging Current | 85A |
| System Voltage | 12V / 24V (Auto-Detect) |
| Max PV Power (12V) | 1020W |
| Max PV Power (24V) | 2040W |
| Display | Dual LCD & LED |
| Battery Type Support | Lead-Acid, AGM, Gel, Lithium (LiFePO4) |
| Operating Temperature | -10°C to +60°C |
| Controller Type | MPPT Plus Hybrid |
| Weight | 3.2 kg |
| Brand | Simtek |
🏆 Why Choose Simtek MPPT Plus 85A?
- 150V VOC input handles larger solar panel arrays for bigger off-grid and backup power setups
- 85A rated current supports high-capacity battery banks for homes, shops, and industrial use
- Four-stage charging (Bulk, Absorption, Float, Equalize) maximizes battery life and health

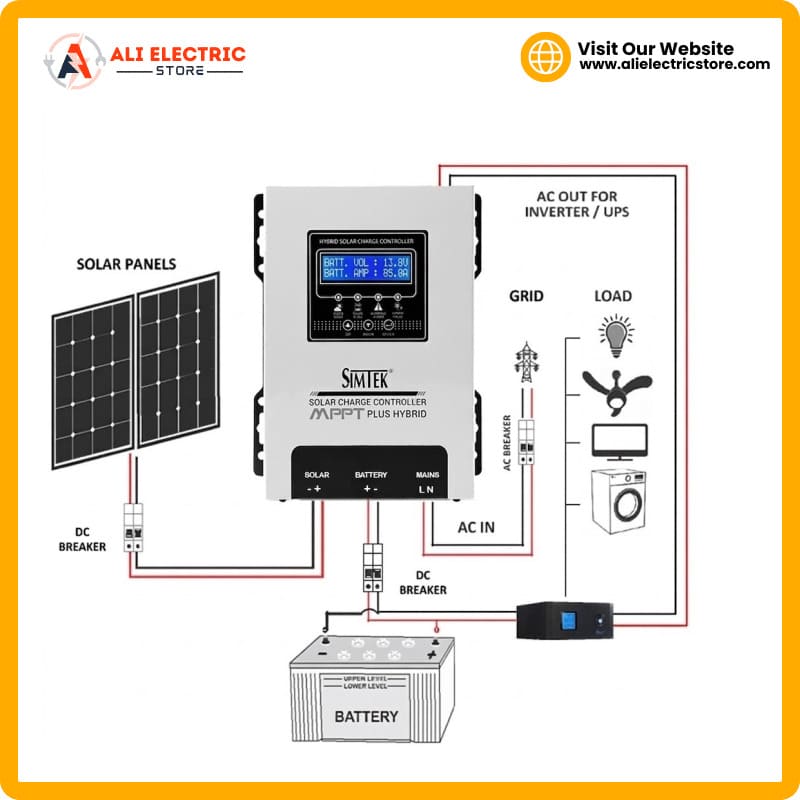

- Hybrid design manages solar input, battery charging, and load output in one compact unit
- Trusted Simtek brand with proven reliability across thousands of installations in Pakistan
📦 Order Now & Get It Delivered Across Pakistan | WhatsApp: 03413489181
Usman Tariq –
Bohot zabardast controller hai bhai! Maine apne ghar ka solar system is se lagaya hai, battery charging ekdum fast aur smooth ho rahi hai. Display bhi clear hai, sab kuch real time dikha raha hai. Delivery bhi 2 din mein aa gayi. Highly recommend karta hun.
Farhan Siddiqui –
Quality ekdum genuine hai, Simtek ka naam suna tha pehle se aur iss product ne disappointed nahi kiya. 12V 24V auto detect ka feature bohot kaam ka hai, koi jhanjhat nahi. Price ke hisab se bhi bilkul theek hai. Ali Electric Store se khareed kar khush hun.
Bilal Ahmed –
Controller acha hai, installation bhi easy thi. MPPT technology ki wajah se panels se zyada power mil rahi hai pehle se. Ek cheez ye hai ke manual thodi aur detailed hoti toh aur acha hota, warna overall 4 star deta hun. Delivery fast thi.
Kamran Ali –
Ekdum badhiya product hai, price ke hisab se best hai. Recommend karta hun.
Zubair Hassan –
Charging fast hai aur display bhi clear — satisfied hun.
